57300-01

Active

Cole Hersee

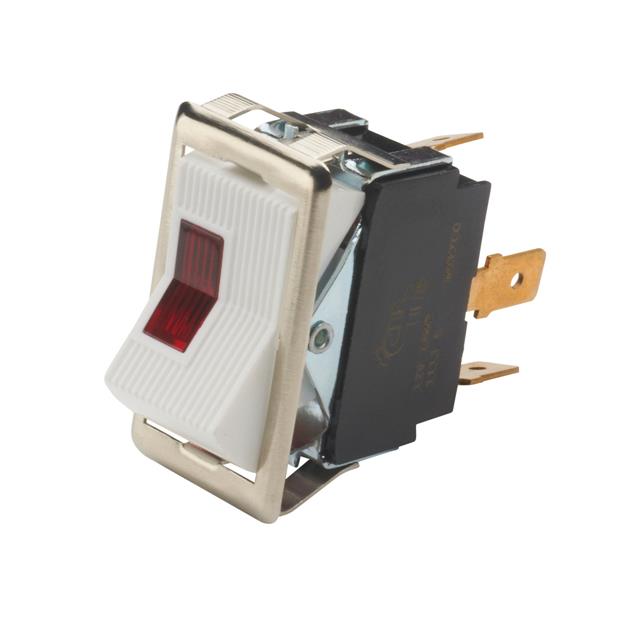

SWITCH ROCKER SPST 25A 12V

Search across all available documentation for this part.

Active

Cole Hersee

SWITCH ROCKER SPST 25A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	80	$ 11.83

General part information

Rocker Switch SPST 25A (DC) Panel Mount, Snap-In

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	57300-01	57300 Series

Actuator Marking	No Marking	No Marking, Vertical, ON OFF
Actuator Type	Concave (Standard V) - Illuminated	Concave (Standard V) - Illuminated
Circuit	SPST	SPST
Color - Actuator/Cap	White	White, Black
Current Rating (Amps)	25 A	25 A
Illumination Type, Color	Incandescent, Red	Incandescent, Red
Illumination Voltage (Nominal)	12 VDC	12 VDC
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	36.83 mm	36.83 mm
Panel Cutout Dimensions [y]	21.08 mm	21.08 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V	12 V

SWITCH ROCKER SPST 25A 12V

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Circuit	Voltage Rating - DC	Switch Function	Illumination Voltage (Nominal)	Mounting Type	Actuator Type	Illumination Type, Color	Color - Actuator/Cap	Actuator Marking	Termination Style	Current Rating (Amps)
Cole Hersee 57300-01	21.08 mm	36.83 mm	SPST	12 V	On-Off	12 VDC	Panel Mount, Snap-In	Concave (Standard V) - Illuminated	Incandescent, Red	White	No Marking	Quick Connect - 0.250" (6.3mm)	25 A
Cole Hersee 57300-03	21.08 mm	36.83 mm	SPST	12 V	On-Off	12 VDC	Panel Mount, Snap-In	Concave (Standard V) - Illuminated	Incandescent, Red	Black	No Marking	Quick Connect - 0.250" (6.3mm)	25 A
Cole Hersee 57300-22	21.08 mm	36.83 mm	SPST	12 V	On-Off	12 VDC	Panel Mount, Snap-In	Concave (Standard V) - Illuminated	Incandescent, Red	White	No Marking	Quick Connect - 0.250" (6.3mm)	25 A
Cole Hersee 57300-11	21.08 mm	36.83 mm	SPST	12 V	On-Off	12 VDC	Panel Mount, Snap-In	Concave (Standard V) - Illuminated	Incandescent, Red	White	ON OFF, Vertical	Quick Connect - 0.250" (6.3mm)	25 A
