Description

General part information

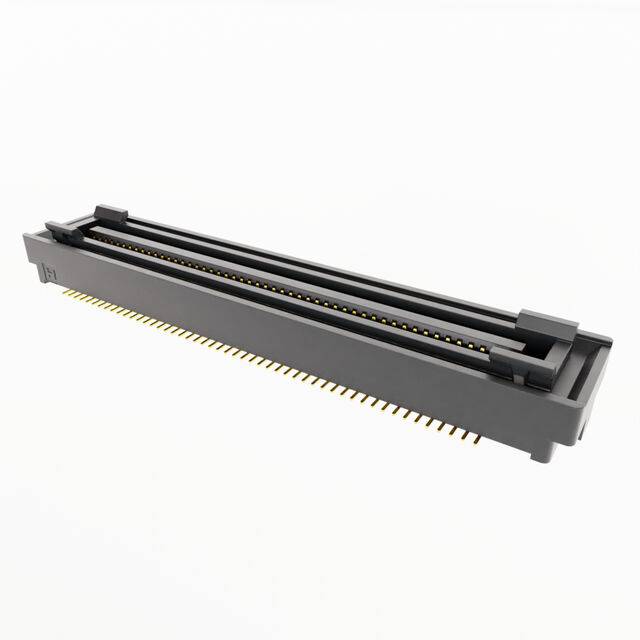

F30-20010045R

100 Position Connector Header, Center Strip Contacts, Floating Surface Mount Gold

Technical Specifications

Parameters and characteristics for this part

SpecificationF30-20010045R
Connector TypeCenter Strip Contacts, Header, Floating
Contact FinishGold
Contact Finish Thickness0
Contact Finish ThicknessFlash
Contact Finish Thickness (string set options)Flash
FeaturesSolder Retention, Pick and Place, Board Guide
Mated Stacking Height Options8mm, 20.95mm, 9mm
Mounting TypeSurface Mount
Number of Positions100
Number of Rows2
Pitch0.031 in
