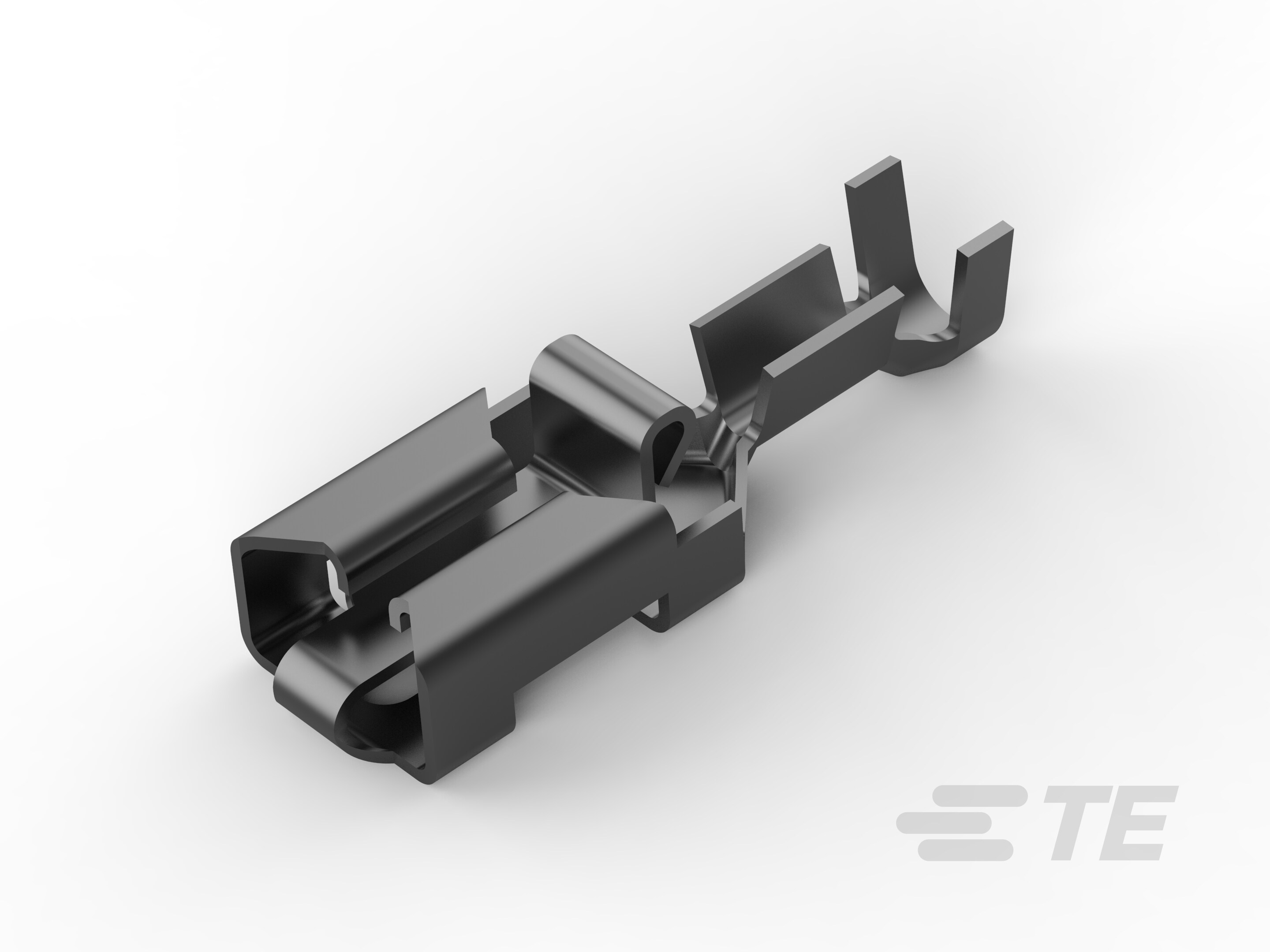

PL LOOSE PIECE REC 0.5-1.5 MM2  PTPBR-160773-6

160773-6

Active
TE Connectivity AMP Connectors

QUICK DISCONNECT TERMINAL, POSITIVE LOCK SERIES, FEMALE QUICK DISCONNECT, 6.35MM X 0.81MM

Find alt
PL LOOSE PIECE REC 0.5-1.5 MM2  PTPBR-160773-6

160773-6

Active
TE Connectivity AMP Connectors

QUICK DISCONNECT TERMINAL, POSITIVE LOCK SERIES, FEMALE QUICK DISCONNECT, 6.35MM X 0.81MM

Find alt

Description

General part information

Positive Lock 250 Series

The Positive Lock series positive lock Receptacle Terminal specifically designed to provide ease of assembly and secure retention to mating tabs. These unique features are attainable by the reduced insertion force of the product and the locking dimple. The receptacle locks onto mating tabs containing holes and is removable only by deflecting an integrally designed depressor prior to withdrawal. The depressor can be deflected manually by thumb pressure or automatically by a cam inside a specially designed nylon housing. If the housing is employed, removal of the terminal from the tab is performed by simply applying withdrawal force to the housing. In addition to providing a means of disconnecting the terminal, the housing performs its traditional insulating function. Aside from reduced insertion forces, positive lock receptacles give the assembler a definite mechanical snap when the terminal is correctly seated over the mating tab.

Technical Specifications

Parameters and characteristics for this part

Specification160773-6
Contact FinishTin
Contact MaterialBrass
GenderFemale
InsulationNon-Insulated
Insulation Diameter (Max)0.13 in
Insulation Diameter (Min)0.091 in
Length - Overall0.902 in
Mounting TypeFree Hanging (In-Line)
Tab Thickness0.032 in
Tab Width0.25 in
Terminal TypeStandard
TerminationCrimp
Wire Gauge (AWG) (Max)20.5 AWG
Wire Gauge (AWG) (Min)16 AWG
