4-794680-6
ActiveTE Connectivity AMP Connectors

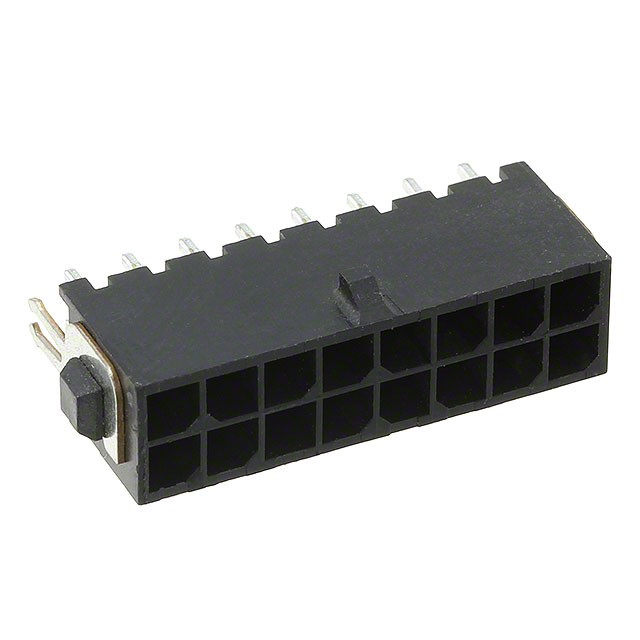

CONN HEADER VERT 16POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4-794680-6
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 16POS 3MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 4-794680-6 | 794680 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Mating | - | Tin-Lead |
| Contact Finish - Post | Tin | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 2.54 çm | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Post [x] | 3.18 mm | 3.18 mm |
| Contact Length - Post [x] | 0.125 in | 0.125 in |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Color | Black | Black |
| Insulation Height | 9.25 mm | 9.25 mm |
| Insulation Height | 0.364 in | 0.364 in |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 16 | 16 |
| Number of Positions | - | 2 - 24 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.118 in | 0.118 in |
| Pitch - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 0.118 in | 0.118 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VDC | 250 VDC |
794680 Series
CONN HEADER VERT 6POS 3MM
| Part | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Insulation Height | Insulation Height | Termination | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Material | Contact Finish - Post | Fastening Type | Contact Shape | Row Spacing - Mating | Row Spacing - Mating | Applications | Contact Material | Insulation Color | Number of Positions | Mounting Type | Contact Type | Style | Number of Positions Loaded | Connector Type | Contact Length - Post [x] | Contact Length - Post [x] | Number of Rows | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Voltage Rating | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-794680-6 | Varies by Wire Gauge | -40 °C | 105 ░C | Shrouded - 4 Wall | 9.25 mm | 0.364 in | Solder | UL94 V-0 | 2.54 çm | 100 çin | Nylon, Polyamide (PA) | Tin | Locking Ramp | Square | 3 mm | 0.118 in | General Purpose | Brass | Black | 6 | Through Hole | Male Pin | Board to Cable/Wire | All | Header | 3.18 mm | 0.125 in | 2 | 2.54 µm | 100 µin | 250 VDC | 0.118 in | 3 mm | ||
TE Connectivity AMP Connectors 3-794680-8 | Varies by Wire Gauge | -40 °C | 105 ░C | Shrouded - 4 Wall | 9.25 mm | 0.364 in | Solder | UL94 V-0 | 2.54 çm | 100 çin | Nylon, Polyamide (PA) | Tin | Locking Ramp | Square | 3 mm | 0.118 in | General Purpose | Brass | Black | 8 | Through Hole | Male Pin | Board to Cable/Wire | All | Header | 3.18 mm | 0.125 in | 2 | 2.54 µm | 100 µin | 250 VDC | 0.118 in | 3 mm | ||
TE Connectivity AMP Connectors 794680-2 | Varies by Wire Gauge | -40 °C | 105 ░C | Shrouded - 4 Wall | 9.25 mm | 0.364 in | Solder | UL94 V-0 | 2.54 çm | 100 çin | Nylon, Polyamide (PA) | Tin-Lead | Locking Ramp | Square | 3 mm | 0.118 in | General Purpose | Brass | Black | 2 | Through Hole | Male Pin | Board to Cable/Wire | All | Header | 3.18 mm | 0.125 in | 2 | 2.54 µm | 100 µin | 250 VDC | Tin-Lead | |||
TE Connectivity AMP Connectors 2-794680-4 | Varies by Wire Gauge | -40 °C | 105 ░C | Shrouded - 4 Wall | 9.25 mm | 0.364 in | Solder | UL94 V-0 | 2.54 çm | 100 çin | Nylon, Polyamide (PA) | Tin-Lead | Locking Ramp | Square | 3 mm | 0.118 in | General Purpose | Brass | Black | 24 | Through Hole | Male Pin | Board to Cable/Wire | All | Header | 3.18 mm | 0.125 in | 2 | 2.54 µm | 100 µin | 250 VDC | 0.118 in | 3 mm | Tin-Lead | |
TE Connectivity AMP Connectors 4-794680-6 | Varies by Wire Gauge | -40 °C | 105 ░C | Shrouded - 4 Wall | 9.25 mm | 0.364 in | Solder | UL94 V-0 | 2.54 çm | 100 çin | Nylon, Polyamide (PA) | Tin | Locking Ramp | Square | 3 mm | 0.118 in | General Purpose | Brass | Black | Through Hole | Male Pin | Board to Cable/Wire | All | Header | 3.18 mm | 0.125 in | 2 | 2.54 µm | 100 µin | 250 VDC | 0.118 in | 3 mm | 16 | ||
TE Connectivity AMP Connectors 3-794680-4 | Varies by Wire Gauge | -40 °C | 105 ░C | Shrouded - 4 Wall | 9.25 mm | 0.364 in | Solder | UL94 V-0 | 2.54 çm | 100 çin | Nylon, Polyamide (PA) | Tin | Locking Ramp | Square | 3 mm | 0.118 in | General Purpose | Brass | Black | 4 | Through Hole | Male Pin | Board to Cable/Wire | All | Header | 3.18 mm | 0.125 in | 2 | 2.54 µm | 100 µin | 250 VDC | 0.118 in | 3 mm | ||
TE Connectivity AMP Connectors 1-794680-4 | Varies by Wire Gauge | -40 °C | 105 ░C | Shrouded - 4 Wall | 9.25 mm | 0.364 in | Solder | UL94 V-0 | 2.54 çm | 100 çin | Nylon, Polyamide (PA) | Tin-Lead | Locking Ramp | Square | 3 mm | 0.118 in | General Purpose | Brass | Black | 14 | Through Hole | Male Pin | Board to Cable/Wire | All | Header | 3.18 mm | 0.125 in | 2 | 2.54 µm | 100 µin | 250 VDC | 0.118 in | 3 mm | Tin-Lead | |
TE Connectivity AMP Connectors 4-794680-0 | Varies by Wire Gauge | -40 °C | 105 ░C | Shrouded - 4 Wall | 9.25 mm | 0.364 in | Solder | UL94 V-0 | 2.54 çm | 100 çin | Nylon, Polyamide (PA) | Tin | Locking Ramp | Square | 3 mm | 0.118 in | General Purpose | Brass | Black | 10 | Through Hole | Male Pin | Board to Cable/Wire | All | Header | 3.18 mm | 0.125 in | 2 | 2.54 µm | 100 µin | 250 VDC | 0.118 in | 3 mm | ||
TE Connectivity AMP Connectors 4-794680-4 | Varies by Wire Gauge | -40 °C | 105 ░C | Shrouded - 4 Wall | 9.25 mm | 0.364 in | Solder | UL94 V-0 | 2.54 çm | 100 çin | Nylon, Polyamide (PA) | Tin | Locking Ramp | Square | 3 mm | 0.118 in | General Purpose | Brass | Black | 14 | Through Hole | Male Pin | Board to Cable/Wire | All | Header | 3.18 mm | 0.125 in | 2 | 2.54 µm | 100 µin | 250 VDC | 0.118 in | 3 mm | ||
TE Connectivity AMP Connectors 794680-8 | Varies by Wire Gauge | -40 °C | 105 ░C | Shrouded - 4 Wall | 9.25 mm | 0.364 in | Solder | UL94 V-0 | 2.54 çm | 100 çin | Nylon, Polyamide (PA) | Tin-Lead | Locking Ramp | Square | 3 mm | 0.118 in | General Purpose | Brass | Black | 8 | Through Hole | Male Pin | Board to Cable/Wire | All | Header | 3.18 mm | 0.125 in | 2 | 2.54 µm | 100 µin | 250 VDC | 0.118 in | 3 mm | Tin-Lead |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.45 | |
| 10 | $ 2.19 | |||
| 130 | $ 1.97 | |||
| 520 | $ 1.79 | |||
| 1040 | $ 1.60 | |||
| 4940 | $ 1.48 | |||
Description
General part information
794680 Series
Connector Header Through Hole 16 position 0.118" (3.00mm)
Documents
Technical documentation and resources
