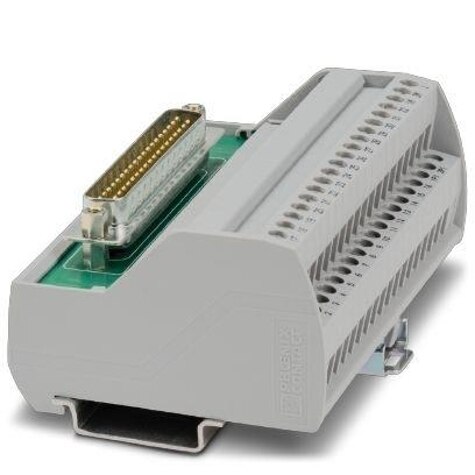

Specification	1100967

Control Side Cable Retainer Type	Jackscrew Socket
Control Side Connection Gender	Male
Control Side Connection Shape	D-Sub
Current Rating (Per Contact)	2 A
Length	1.776 in
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Positions / Poles	37
Process Side Connection	Terminal Blocks, Screw Connection
Voltage - Rated	125 VAC
Width	3.976 in
Wire Gauge (AWG) (Max)	30 AWG
Wire Gauge (AWG) (Min)	12 AWG
