5120
ActiveKeystone Electronics
PC TEST POINT COMPACT BROWN
5120
ActiveKeystone Electronics
PC TEST POINT COMPACT BROWN
Description
General part information
5120

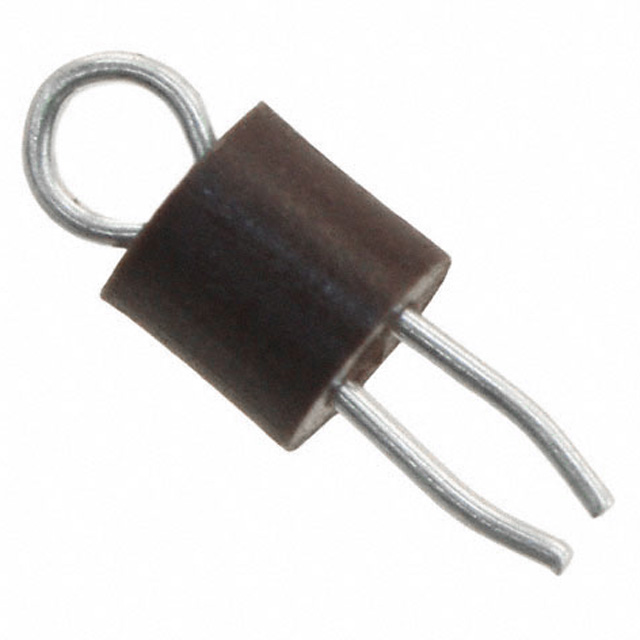

Brown PC Test Point, Compact Phosphor Bronze Silver Plating Through Hole Mounting Type
Technical Specifications
Parameters and characteristics for this part
| Specification | 5120 |
|---|---|
| Color | Brown |
| Hole Diameter | 0.063 in |
| Material - Body | Phosphor Bronze |
| Material - Insulation | Nylon 46, UL 94V-0 |
| Mounting Type | Through Hole |
| Plating | Silver |
| Size / Dimension Diameter | 0.125 in |
| Size / Dimension Length | 0.22 in |
| Type | Compact, PC Test Point |
