CPPT1-HT0RT
ObsoleteCardinal Components Inc.
OSC PROG TTL 5V 25PPM EN/DS
CPPT1-HT0RT
ObsoleteCardinal Components Inc.
OSC PROG TTL 5V 25PPM EN/DS
Description
General part information
CPPT1-HT0RT

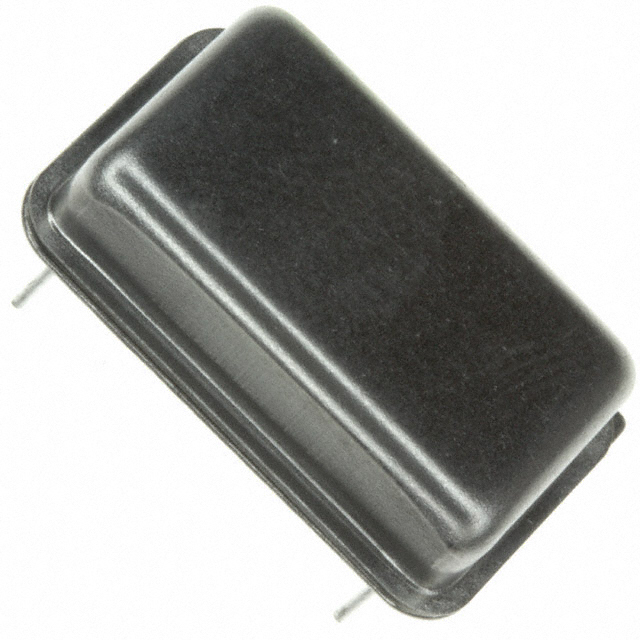

XO (Standard) TTL 1 MHz ~ 133 MHz Programmable Oscillator 5V Enable/Disable 14-DIP, 4 Leads (Full Size, Metal Can)
Technical Specifications
Parameters and characteristics for this part
| Specification | CPPT1-HT0RT |
|---|---|
| Available Frequency Range (Maximum) | 133 MHz |
| Available Frequency Range (Minimum) | 1 MHz |
| Base Resonator | Crystal |
| Current - Supply (Max) | 45 mA |
| Frequency Stability | 25 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.2 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Output | TTL |
| Package Leads | 4 Leads |
| Package Name | 14-DIP |
| Size / Dimension Length | 0.819 in |
| Size / Dimension Width | 0.52 in |
| Type | XO (Standard) |
| Voltage - Supply | 5 VDC |
