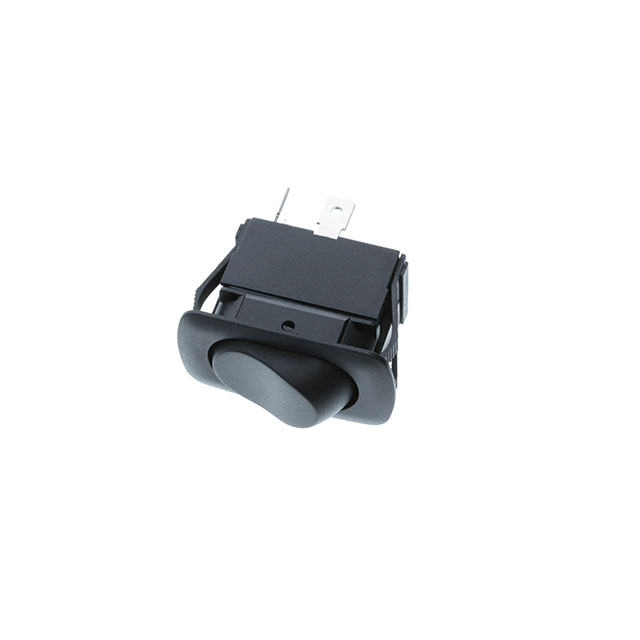

SRA1-2B-AC-1-NN
ActiveSwitch Components
VAC SEALED IP56, DPST OFF-(ON)
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SRA1-2B-AC-1-NN
ActiveSwitch Components
VAC SEALED IP56, DPST OFF-(ON)
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SRA1-2B-AC-1-NN |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Approval Agency | CSA, cURus, ENEC |
| Circuit | DPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A |
| Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 36.6 mm |
| Panel Cutout Dimensions [y] | 21.2 mm |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SRA1-2B-AC-1-NN
Rocker Switch DPST 16A (AC) 125 V Panel Mount, Snap-In
