L6R12H-120

Active

Tri-Mag, LLC

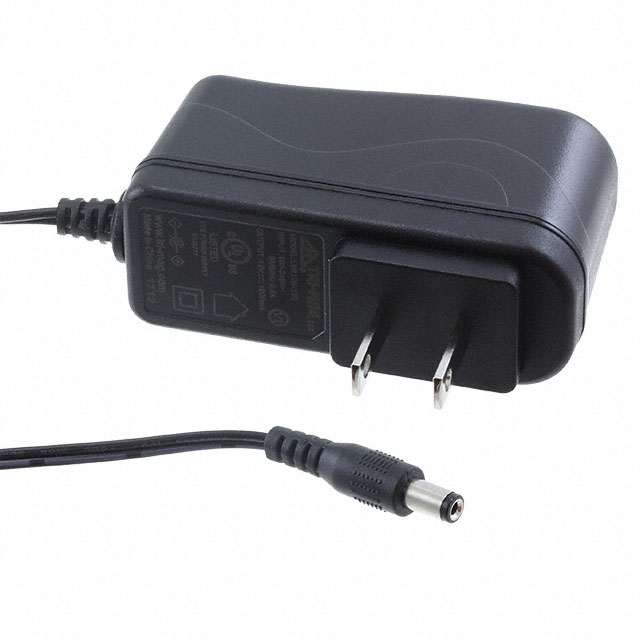

AC/DC WALL MOUNT ADAPTER 12V 12W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L6R12H-120

Active

Tri-Mag, LLC

AC/DC WALL MOUNT ADAPTER 12V 12W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L6R12H-120

Applications	ITE (Commercial)
Approval Agency	cUL, FCC, UL
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption	100 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	10 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	12 W
Region Utilized	North America
Size / Dimension [x]	1.54 in
Size / Dimension [x]	39.2 mm
Size / Dimension [y]	24 mm
Size / Dimension [y]	24.13 mm
Size / Dimension [z]	1.71 in
Size / Dimension [z]	43.5 mm
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

L6R12 Series

Part	Form	Standard Number	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Voltage - Output	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	No Load Power Consumption	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Polarization	Output Connector [diameter]	Output Connector [x]	Output Connector	Cord Length	Cord Length	Efficiency	Input Connector	Region Utilized	Power (Watts)	Current - Output (Max) [Max]
Tri-Mag, LLC L6R12-240	Wall Mount (Class II)	62368-1	1.61 "	59 mm	1 "	40.9 mm	25.4 mm	2.32 in	cUL FCC UL	24 V	Fixed Blade	40 °C	0 °C	100 mW	90 VAC	264 VAC	ITE (Commercial)	Positive Center	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	1.5 m	59 in	Level VI	NEMA 1-15P	North America	12 W	500 mA
Tri-Mag, LLC L6R12H-050	Wall Mount (Class II)	62368-1	24.13 mm	39.2 mm	1.71 in	24 mm	43.5 mm	1.54 in	cUL FCC UL	5 V	Fixed Blade	40 °C	10 °C	100 mW	90 VAC	264 VAC	ITE (Commercial)	Positive Center	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	1.5 m	59 in	Level VI	NEMA 1-15P	North America	10 W	2 A
Tri-Mag, LLC L6R12-300	Wall Mount (Class II)	62368-1	1.61 "	58.9 mm	1.24 "	40.9 mm	31.5 mm	2.32 in	cUL FCC UL	30 VDC	Fixed Blade	40 °C	0 °C	100 mW	90 VAC	264 VAC	ITE (Commercial)	Positive Center	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	1.5 m	59 in	Level VI	NEMA 1-15P	North America	12 W	400 mA
Tri-Mag, LLC L6R12-090	Wall Mount (Class II)	62368-1	1.61 "	59 mm	1 "	40.9 mm	25.4 mm	2.32 in	cUL FCC UL	9 V	Fixed Blade	40 °C	0 °C	100 mW	90 VAC	264 VAC	ITE (Commercial)	Positive Center	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	1.5 m	59 in	Level VI	NEMA 1-15P	North America	12 W	1.3 A
Tri-Mag, LLC L6R12H-120	Wall Mount (Class II)	62368-1	24.13 mm	39.2 mm	1.71 in	24 mm	43.5 mm	1.54 in	cUL FCC UL	12 V	Fixed Blade	40 °C	10 °C	100 mW	90 VAC	264 VAC	ITE (Commercial)	Positive Center	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	1.5 m	59 in	Level VI	NEMA 1-15P	North America	12 W	1 A
Tri-Mag, LLC L6R12-180	Wall Mount (Class II)	62368-1	1.61 "	58.9 mm	1.24 "	40.9 mm	31.5 mm	2.32 in	cUL FCC UL	18 V	Fixed Blade	40 °C	0 °C	100 mW	90 VAC	264 VAC	ITE (Commercial)	Positive Center	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	1.5 m	59 in	Level VI	NEMA 1-15P	North America	13 W	700 mA
Tri-Mag, LLC L6R12-050	Wall Mount (Class II)	62368-1	1.61 "	59 mm	1 "	40.9 mm	25.4 mm	2.32 in	cUL FCC UL	5 V	Fixed Blade	40 °C	0 °C	100 mW	90 VAC	264 VAC	ITE (Commercial)	Positive Center	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	1.5 m	59 in	Level VI	NEMA 1-15P	North America	11 W	2.1 A
