US381-000005-030PA

Active

TE Connectivity Measurement Specialties

SENSOR 30PSIA 1/4"NPT .02A

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

SENSOR 30PSIA 1/4"NPT .02A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	US381-000005-030PA	US381 Series

Accuracy	0.25 %	0.25 %
Applications	-	Industrial Automation
Features	Temperature Compensated, Amplified Output	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	90 PSI	45 - 90 PSI
Maximum Pressure [Max]	620.53 kPa	310.26 - 620.53 kPa
Operating Pressure	206.84 kPa	206.84 kPa
Operating Pressure	30 PSI	30 PSI
Operating Pressure	-	15 PSI
Operating Pressure	-	103.42 kPa
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Output [Max]	20 mA	20 mA
Output [Min]	4 mA	4 mA
Output Type	Analog Current	Analog Current
Package / Case	Cylinder	Cylinder
Port Size [custom]	NPT	NPT
Port Size [custom]	Male	Male
Port Size [x]	0.25 "	0.25 "
Port Size [x]	6.35 mm	6.35 mm
Port Style	Threaded	Threaded
Termination Style	Cable	Cable
Voltage - Supply [Max]	14 V	14 - 30 V
Voltage - Supply [Min]	2.5 V	2.5 - 9 V

SENSOR 30PSIA 1/4"NPT .02A

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Style	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Accuracy	Maximum Pressure [Max]	Maximum Pressure [Max]	Output Type	Termination Style	Package / Case	Output [Max]	Output [Min]	Operating Pressure	Operating Pressure	Applications	Operating Pressure [custom]	Operating Pressure [custom]
TE Connectivity Measurement Specialties US381-000005-030PA	2.5 V	14 V	Threaded	NPT	0.25 "	6.35 mm	Male	Amplified Output, Temperature Compensated	-40 °C	105 ░C	0.25 %	90 PSI	620.53 kPa	Analog Current	Cable	Cylinder	20 mA	4 mA	206.84 kPa	30 PSI
TE Connectivity Measurement Specialties US381-000005-015PA	9 V	30 VDC	Threaded	NPT	0.25 "	6.35 mm	Male	Amplified Output, Temperature Compensated	-40 °C	105 ░C	0.25 %	45 PSI	310.26 kPa	Analog Current	Cable	Cylinder	20 mA	4 mA			Industrial Automation	15 PSI	103.42 kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 214.38

General part information

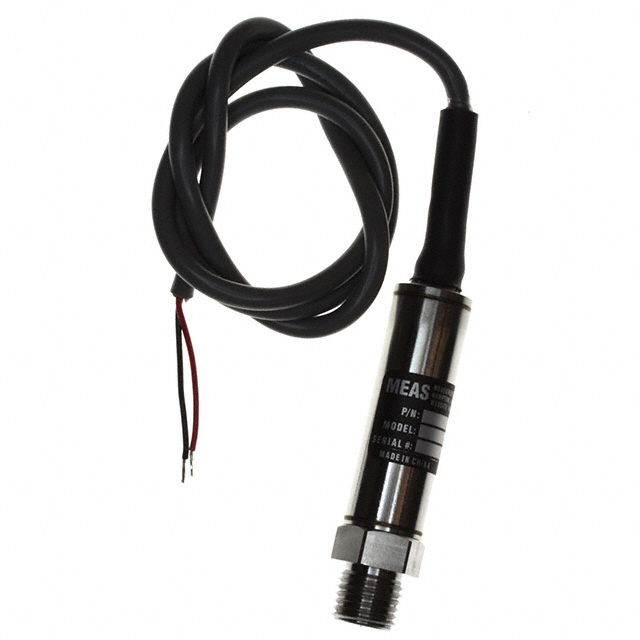

Pressure Sensor 30PSI (206.84kPa) Absolute Male - 1/4" (6.35mm) NPT 4 mA ~ 20 mA Cylinder
