SPM3020T-R47M
ObsoleteTDK Corporation
FIXED IND 470NH 4.8A 28.9MOHM SM
SPM3020T-R47M
ObsoleteTDK Corporation
FIXED IND 470NH 4.8A 28.9MOHM SM
Description
General part information
SPM3020T-R47M

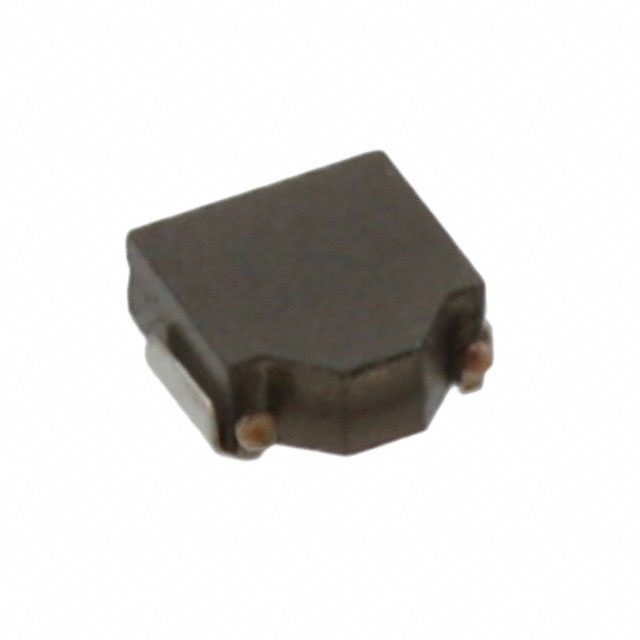

470 nH Shielded Drum Core, Wirewound Inductor 4.8 A 28.9mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SPM3020T-R47M |
|---|---|
| Current - Saturation (Isat) | 6.7 A |
| Current Rating | 4.8 A |
| DC Resistance (DCR) (Max) | 28.9 mOhm |
| Height - Seated (Max) | 0.079 in |
| Inductance | 470 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.118 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
