Description
General part information

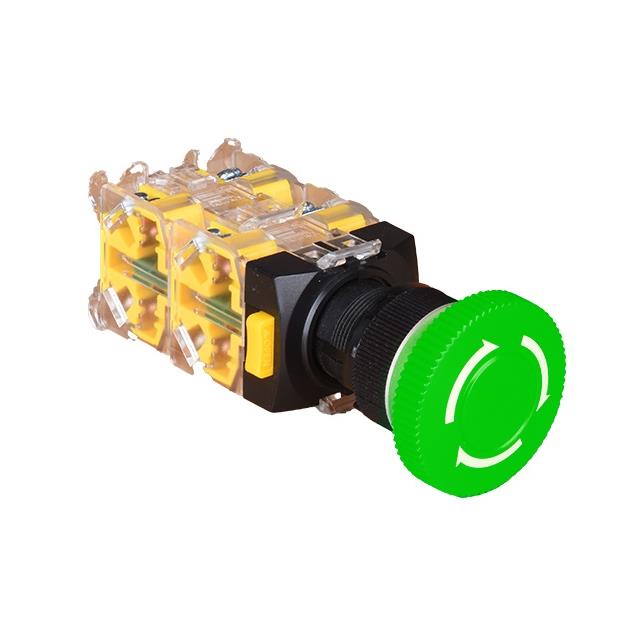

NF30W-PERG22
SWITCH ESTOP TWIST RESET 6A 250V
Technical Specifications
Parameters and characteristics for this part
| Specification | NF30W-PERG22 |
|---|---|
| Circuit | 4PST-2NO/2NC |
| Current Rating | 6 A, 3 A |
| Ingress Protection Description | Water Resistant, Dust Protected |
| Ingress Protection IP Rating | IP54 |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 30.3 mm |
| Panel Cutout Shape | Circular |
| Reset Operation | Twist |
| Switch Function | Off-On |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
