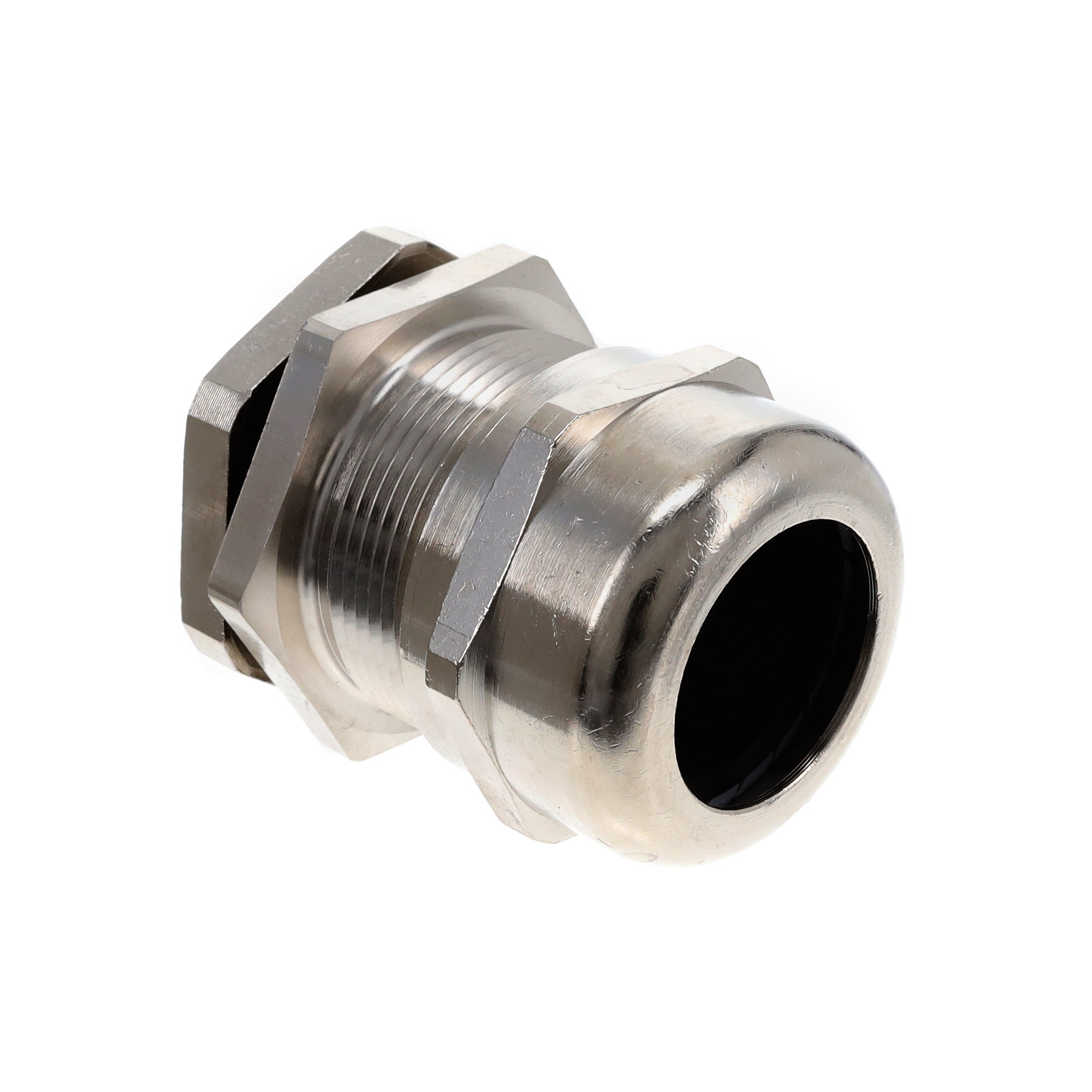

EM-SGL-NPT1-MET-B

Active

TE Connectivity Raychem Cable Protection

CABLE GLAND 18.01-25MM 1" NPT

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CABLE GLAND 18.01-25MM 1" NPT

Technical Specifications

Parameters and characteristics for this part

Specification	EM-SGL-NPT1-MET-B

Color	Silver
Includes	Locknut, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max)	25 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.984 in
Outside Cable Diameter (Min) [Min] [diameter]	0.709 in
Outside Cable Diameter (Min) [Min] [diameter]	18.01 mm
Thread Length	13 mm
Thread Length	0.512 in
Thread Size	1" NPT
Type	Cable Gland

Part	Type	Thread Size	Thread Length	Thread Length	Includes	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max)	Ingress Protection	Color	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity Raychem Cable Protection EM-SGL-NPT1-MET-B	Cable Gland	1" NPT	13 mm	0.512 in	Locknut Seal	Brass Nickel Plated	0.709 in	18.01 mm	0.984 in	25 mm	IP68 - Dust Tight Waterproof	Silver	100 °C	-20 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated 1" NPT Silver
