FK10M70000S0VJ
ActiveNextGen Components
FILTER 10.7MHZ FM, VJ
FK10M70000S0VJ
ActiveNextGen Components
FILTER 10.7MHZ FM, VJ
Description
General part information
FK10M70000S0VJ

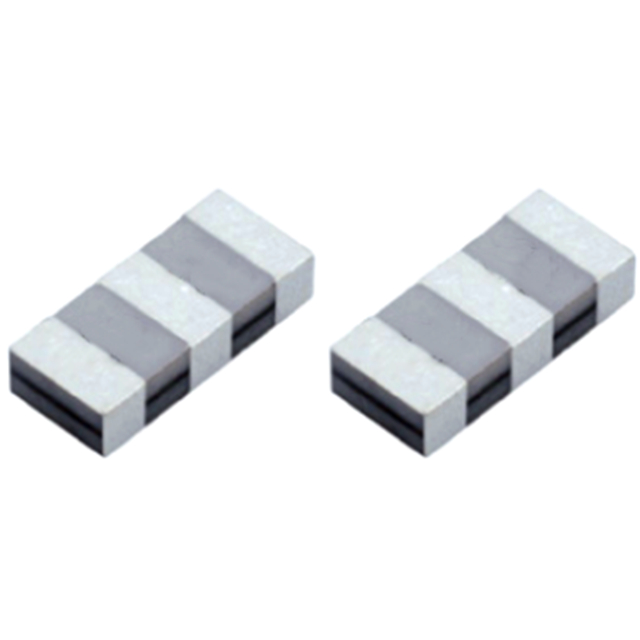

10.7MHz Center FM Ceramic Filter 150 kHz 330Ohm 2706 (6915 Metric), 3 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | FK10M70000S0VJ |
|---|---|
| Bandwidth | 150 kHz |
| Filter Type | FM |
| Frequency (Center) | 10.7 MHz |
| Height (Max) | 0.067 in |
| Impedance | 330 Ohm |
| Insertion Loss | 5.5 dB |
| Mounting Type | Surface Mount |
| Package Name | 2706 |
| Pad Count | 3 PC Pad |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.118 in |
