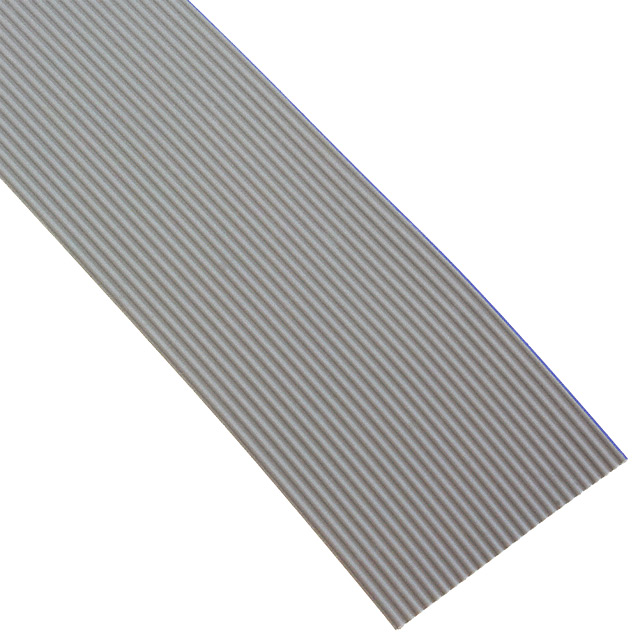

RIBBON CABLE, LSZH MEDIUM FLEX FLAT, UNSHIELDED, 26 CONDUCTOR, 28 AWG, 100 FT, 30.48 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Cables & Accessories Selection Guide +1

HF539/26

Active

3M (TC)

RIBBON CABLE, LSZH MEDIUM FLEX FLAT, UNSHIELDED, 26 CONDUCTOR, 28 AWG, 100 FT, 30.48 M

Deep-Dive with AI

DocumentsDatasheet Cables & Accessories Selection Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HF539/26

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	40 AWG
Current Rating (Amps)	1 A
Features	Zippable
First Conductor Mark	Blue
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Polyolefin (PO)
Jacket Color	Gray
Length	15.24 m, 304.8 mm
Length	50 ft, 1 ft
Number of Conductors	26
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 21682
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width	1.3 "
Ribbon Width	33.02 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

HF539 Series

Part	Conductor Material	Wire Gauge	Insulation Resistance	Jacket (Insulation) Material	Length	Length	Number of Conductors	Ribbon Width	Ribbon Width	Pitch [x]	Pitch [x]	Jacket Color	Voltage	First Conductor Mark	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Ratings	Ribbon Thickness	Ribbon Thickness	Cable Type	Features	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Current Rating (Amps)	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width [custom]	Ribbon Width [custom]	Ribbon Width
3M (TC) HF539/50	Copper Tinned	28 AWG	10 GOhm	Polyolefin (PO)	15.24 m	50 ft	50	63.5 mm	2.5 "	0.05 in	1.27 mm	Gray	300 V	Blue	-40 °C	105 ░C	Unshielded	UL Style 21682	0.89 mm	0.035 in	Flat Cable	Zippable	19 Strands	40 AWG	3.05 m	10 ft	1 A
3M (TC) HF539/16	Copper Tinned	28 AWG	10 GOhm	Polyolefin (PO)	304.8 mm	1 ft	16			0.05 in	1.27 mm	Gray	300 V	Blue	-40 °C	105 ░C	Unshielded	UL Style 21682	0.89 mm	0.035 in	Flat Cable	Zippable	19 Strands	40 AWG			1 A	20.32 mm	0.8 in
3M (TC) HF539/40	Copper Tinned	28 AWG	10 GOhm	Polyolefin (PO)	304.8 mm	1 ft	40			0.05 in	1.27 mm	Gray	300 V	Blue	-40 °C	105 ░C	Unshielded	UL Style 21682	0.89 mm	0.035 in	Flat Cable	Zippable	19 Strands	40 AWG			1 A	50.8 mm	2 in
3M (TC) HF539/26	Copper Tinned	28 AWG	10 GOhm	Polyolefin (PO)	15.24 m 304.8 mm	1 ft 50 ft	26	33.02 mm	1.3 "	0.05 in	1.27 mm	Gray	300 V	Blue	-40 °C	105 ░C	Unshielded	UL Style 21682	0.89 mm	0.035 in	Flat Cable	Zippable	19 Strands	40 AWG			1 A
3M (TC) HF539/64	Copper Tinned	28 AWG	10 GOhm	Polyolefin (PO)	7.62 m 304.8 mm	1 ft 25 ft	64			0.05 in	1.27 mm	Gray	300 V	Blue	-40 °C	105 ░C	Unshielded	UL Style 21682	0.89 mm	0.035 in	Flat Cable	Zippable	19 Strands	40 AWG	3.05 m 30.48 m	10 ft 100 ft	1 A	81.28 mm	3.2 in
3M (TC) HF539/10	Copper Tinned	28 AWG	10 GOhm	Polyolefin (PO)	7.62 m 15.24 m 304.8 mm	1 ft 25 ft 50 ft	10			0.05 in	1.27 mm	Gray	300 V	Blue	-40 °C	105 ░C	Unshielded	UL Style 21682	0.89 mm	0.035 in	Flat Cable	Zippable	19 Strands	40 AWG	30.48 m	100 ft	1 A			0.5 "	12.7 mm
3M (TC) HF539/20	Copper Tinned	28 AWG	10 GOhm	Polyolefin (PO)	7.62 m 15.24 m 304.8 mm	1 ft 25 ft 50 ft	20	1 in		0.05 in	1.27 mm	Gray	300 V	Blue	-40 °C	105 ░C	Unshielded	UL Style 21682	0.89 mm	0.035 in	Flat Cable	Zippable	19 Strands	40 AWG	30.48 m	100 ft	1 A					25.4 mm
