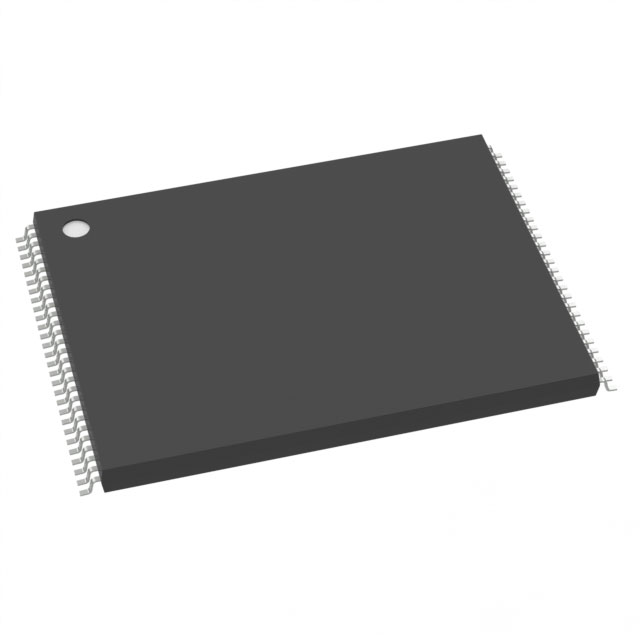

W29N02GVSIAF TR
ActiveWinbond Electronics
IC FLASH 2GBIT 48-TSOP
Deep-Dive with AI
Search across all available documentation for this part.
W29N02GVSIAF TR
ActiveWinbond Electronics
IC FLASH 2GBIT 48-TSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | W29N02GVSIAF TR | W29N02 Series |
|---|---|---|
| - | - | |
| Access Time | 25 ns | 22 - 35 ns |
| Clock Frequency | - | 29 - 40 MHz |
| Memory Format | FLASH | FLASH |
| Memory Interface | - | Parallel |
| Memory Organization | 256M x 8 | 256M x 8 |
| Memory Organization | - | 128 M |
| Memory Size | 2 Gbit | 2 Gbit |
| Memory Type | Non-Volatile | Non-Volatile |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 48-TFSOP | 63-VFBGA, 48-TFSOP, 48-VFBGA |
| Package / Case [y] | 18.4 mm | 18.4 mm |
| Package / Case [y] | 0.724 in | 0.724 in |
| Supplier Device Package | 48-TSOP | 63-VFBGA (9x11), 63-FBGA (11x9), 48-TSOP, 48-VFBGA |
| Supplier Device Package | - | 6.5 |
| Supplier Device Package | - | 8 |
| Technology | FLASH - NAND (SLC) | FLASH - NAND (SLC) |
| Voltage - Supply [Max] | 3.6 V | 1.95 - 3.6 V |
| Voltage - Supply [Min] | 2.7 V | 1.7 - 2.7 V |
| Write Cycle Time - Word, Page | 25 ns | 25 - 35 ns |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1500 | $ 3.59 | |
W29N02 Series
SLC NAND FLASH SERIAL 3V/3.3V 2G-BIT 256M X 8 63-PIN VFBGA
| Part | Access Time | Memory Size | Memory Organization | Memory Type | Memory Interface | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Mounting Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Supplier Device Package | Write Cycle Time - Word, Page | Technology | Memory Format | Clock Frequency | Package / Case [y] | Package / Case [y] | Supplier Device Package [y] | Supplier Device Package [x] | Memory Organization |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Winbond Electronics W29N02KVBIAF | |||||||||||||||||||||
Winbond Electronics W29N02GVBIAF | 25 ns | 2 Gbit | 256M x 8 | Non-Volatile | Parallel | 85 °C | -40 °C | 63-VFBGA | Surface Mount | 2.7 V | 3.6 V | 63-VFBGA (9x11) | 25 ns | FLASH - NAND (SLC) | FLASH | ||||||
Winbond Electronics W29N02KVBIAF | 25 ns | 2 Gbit | 256M x 8 | Non-Volatile | Parallel | 85 °C | -40 °C | 63-VFBGA | Surface Mount | 2.7 V | 3.6 V | 63-VFBGA (9x11) | 25 ns | FLASH - NAND (SLC) | FLASH | 40 MHz | |||||
Winbond Electronics W29N02GVBIAA | 25 ns | 2 Gbit | 256M x 8 | Non-Volatile | Parallel | 85 °C | -40 °C | 63-VFBGA | Surface Mount | 2.7 V | 3.6 V | 63-FBGA (11x9) | 25 ns | FLASH - NAND (SLC) | FLASH | ||||||
Winbond Electronics W29N02GVSIAF | 25 ns | 2 Gbit | 256M x 8 | Non-Volatile | Parallel | 85 °C | -40 °C | 48-TFSOP | Surface Mount | 2.7 V | 3.6 V | 48-TSOP | 25 ns | FLASH - NAND (SLC) | FLASH | 18.4 mm | 0.724 in | ||||
Winbond Electronics W29N02KWDIBF TR | 22 ns | 2 Gbit | Non-Volatile | Parallel | 85 °C | -40 °C | 48-VFBGA | Surface Mount | 1.7 V | 1.95 V | 48-VFBGA | 25 ns | FLASH - NAND (SLC) | FLASH | 6.5 | 8 | 128 M | ||||
Winbond Electronics W29N02KWDIBF | 22 ns | 2 Gbit | Non-Volatile | Parallel | 85 °C | -40 °C | 48-VFBGA | Surface Mount | 1.7 V | 1.95 V | 48-VFBGA | 25 ns | FLASH - NAND (SLC) | FLASH | 6.5 | 8 | 128 M | ||||
Winbond Electronics W29N02GWBIBA TR | 35 ns | 2 Gbit | 256M x 8 | Non-Volatile | Parallel | 85 °C | -40 °C | 63-VFBGA | Surface Mount | 1.7 V | 1.95 V | 63-VFBGA (9x11) | 35 ns | FLASH - NAND (SLC) | FLASH | 29 MHz | |||||
Winbond Electronics W29N02GVSIAA | 25 ns | 2 Gbit | 256M x 8 | Non-Volatile | Parallel | 85 °C | -40 °C | 48-TFSOP | Surface Mount | 2.7 V | 3.6 V | 48-TSOP | 25 ns | FLASH - NAND (SLC) | FLASH | 18.4 mm | 0.724 in | ||||
Winbond Electronics W29N02GZBIBA | |||||||||||||||||||||
Winbond Electronics W29N02GVBIAF TR | 25 ns | 2 Gbit | 256M x 8 | Non-Volatile | 85 °C | -40 °C | 63-VFBGA | Surface Mount | 2.7 V | 3.6 V | 63-VFBGA (9x11) | 25 ns | FLASH - NAND (SLC) | FLASH | |||||||
Winbond Electronics W29N02GVSIAF TR | 25 ns | 2 Gbit | 256M x 8 | Non-Volatile | 85 °C | -40 °C | 48-TFSOP | Surface Mount | 2.7 V | 3.6 V | 48-TSOP | 25 ns | FLASH - NAND (SLC) | FLASH | 18.4 mm | 0.724 in | |||||
Winbond Electronics W29N02GWBIBA | 35 ns | 2 Gbit | Non-Volatile | Parallel | 85 °C | -40 °C | 63-VFBGA | Surface Mount | 1.7 V | 1.95 V | 63-VFBGA (9x11) | 35 ns | FLASH - NAND (SLC) | FLASH | 128 M | ||||||
Winbond Electronics W29N02GZBIBA | 35 ns | 2 Gbit | 256M x 8 | Non-Volatile | Parallel | 85 °C | -40 °C | 63-VFBGA | Surface Mount | 1.7 V | 1.95 V | 63-VFBGA (9x11) | 35 ns | FLASH - NAND (SLC) | FLASH |
Description
General part information
W29N02 Series
FLASH - NAND (SLC) Memory IC 2Gbit 25 ns 48-TSOP
Documents
Technical documentation and resources
No documents available
