15364F
ActiveHeyco Products Corporation
SBCPM 687-187 V0 BLACK
15364F
ActiveHeyco Products Corporation
SBCPM 687-187 V0 BLACK
Description
General part information
15364F

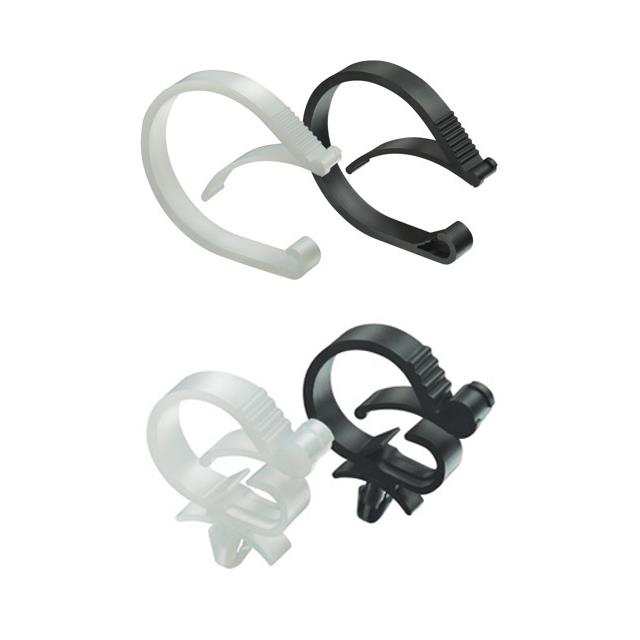

Cable Clip, C-Type Black Arrowhead, Winged 0.410" ~ 0.690" (10.41mm ~ 17.53mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 15364F |
|---|---|
| Color | Black |
| Height | 1.05 in |
| Length | 0.31 in |
| Material | Nylon 6, 6, Polyamide (PA66) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Arrowhead, Winged |
| Opening Size (Max) | 0.69 in |
| Opening Size (Min) | 0.41 in |
| Panel Hole Size | 0.187 in |
| Type | Clip, C-Type |
| Type Attributes | Round, Locking |
| Width | 1.24 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
