Description
General part information

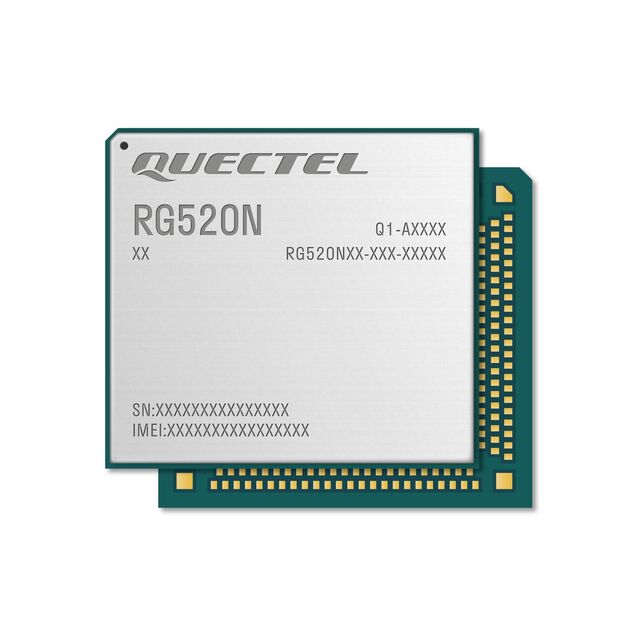

RG520NEBDD-M28-SGASA
Cellular LTE Transceiver Module 6GHz Antenna Not Included Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | RG520NEBDD-M28-SGASA |
|---|---|
| Antenna Type | Antenna Not Included |
| Data Rate | 3.4 Gbs |
| Frequency | 6 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | 392-BLGA Module |
| Protocol | LTE |
| RF Family/Standard | Cellular |
| Serial Interfaces | ADC, PCM, I2C, USB, UART, GPIO, SPI |
| Utilized IC / Part | SDX62-0-AA |
| Voltage - Supply (Maximum) | 4.4 V |
| Voltage - Supply (Minimum) | 3.3 V |
