1718634
ActivePhoenix Contact

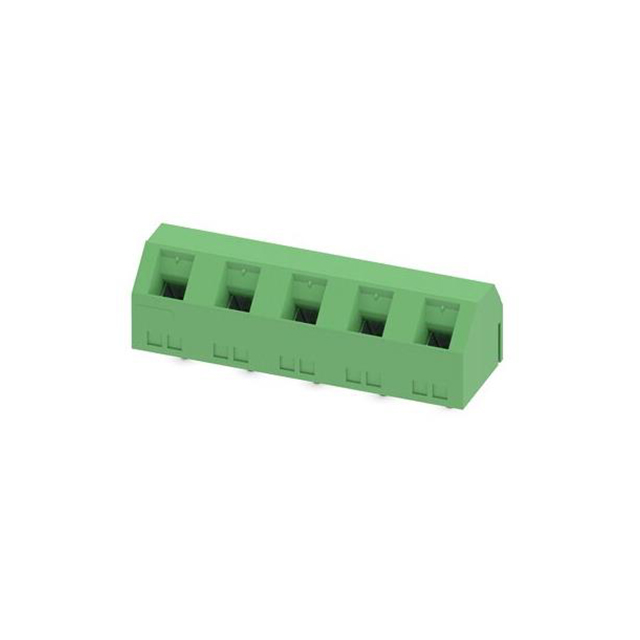

TERM BLOCK 5POS 55DEG 7.62MM PCB
1718634
ActivePhoenix Contact
TERM BLOCK 5POS 55DEG 7.62MM PCB
Description
General part information
1718634
5 Position Wire to Board Terminal Block 55° (125°) Angle with Board 0.300" (7.62mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1718634 |
|---|---|
| Color | Green |
| Current | 10 A |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation (Angle) | 55 ° |
| Mating Orientation (Angle) (Alternate) | 125 ° |
| Mating Orientation (Description) | Angle with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.3 in |
| Positions Per Level | 5 |
| Screw Thread | M3 |
| Torque - Screw (Maximum) | 0.6 Nm |
| Torque - Screw (Minimum) | 0.5 Nm |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
