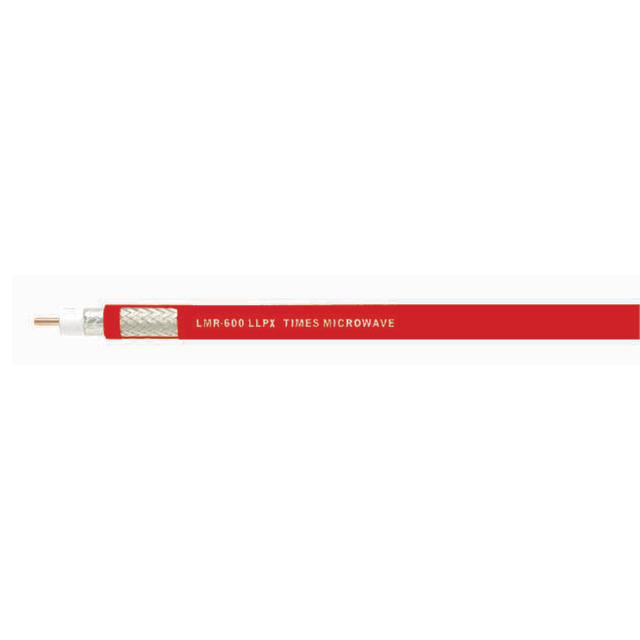

LMR-600-LLPX

Active

Amphenol Times Microwave Systems

LMR-600 LOW LOSS PLENUM, 250'

Deep-Dive with AI

Search across all available documentation for this part.

LMR-600-LLPX

Active

Amphenol Times Microwave Systems

LMR-600 LOW LOSS PLENUM, 250'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 760.17
		1	$ 137.73
		1	$ 1517.17
		3	$ 127.42
		3	$ 703.26
		5	$ 123.00
		7	$ 120.05
		10	$ 117.11

Description

General part information

LMR-600 Series

Coaxial - Plenum Cable 250.0' (76.20m) 50 Ohms

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LMR-600-LLPX	LMR-600 Series

Cable Type	Coaxial - Plenum	Coaxial - Plenum, Coaxial, Coaxial - Riser
Conductor Material	Aluminum, Copper Coated	Aluminum, Copper Coated, Copper, Bare
Conductor Strand	Solid	Solid
Dielectric Diameter [diameter]	11.56 mm	11.56 mm
Dielectric Diameter [diameter]	0.455 in	0.455 in
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Foam Polyethylene (FPE)
Features	-	Flame Retardant, Fire Retardant, Direct Burial, Watertight
Impedance	50 Ohms	50 - 75 Ohms
Jacket (Insulation) Diameter [diameter]	14.35 mm	14.35 - 14.99 mm
Jacket (Insulation) Diameter [diameter]	0.565 in	0.565 - 0.59 in
Jacket (Insulation) Material	Fluoropolymer, Plenum	Plenum, Poly-Vinyl Chloride (PVC), Polyethylene (PE), Low Smoke Zero Halogen (LSZH), Thermoplastic Elastomer (TPE), Poly-Vinyl Chloride (PVC), Riser, Polyethylene (PE), Riser, Fluoropolymer, Plenum
Jacket Color	Red	Orange, Black, Red
Length	76.2 m, 15.24 m	15.24 - 76.2 m
Length	3000 ", 50 ft	50 - 3000 ft
Length	-	Enter Number of Feet in Order Quantity
Length [x]	100 ft, 10 ft	1 - 100 ft
Length [x]	30.48 m, 3.05 m	3.05 - 300 mm
Operating Temperature [Max]	125 °C	75 - 125 ░C
Operating Temperature [Min]	-40 °C	-40 - -5 °C
Shield Material	Copper, Tinned, Aluminum	Copper, Tinned, Aluminum
Shield Type	Foil, Braid	Braid, Foil
Spool Size	-	500 '
Spool Size	-	152.4 m
VoP, Velocity of Propagation	76	76 - 87

LMR-600 Series

CABLE LMR-600 FRPVC 50'

Part	Jacket (Insulation) Material	Jacket Color	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Features	VoP, Velocity of Propagation	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Impedance	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Dielectric Material	Length	Length	Shield Material	Shield Type	Conductor Strand	Length [x]	Length [x]
Amphenol Times Microwave Systems LMR-600-LLPL	Plenum, Poly-Vinyl Chloride (PVC)	Orange	Coaxial - Plenum	75 ░C	-5 °C	Aluminum, Copper Coated	Flame Retardant	76	11.56 mm	0.455 in	50 Ohms	14.99 mm	0.59 in	Polytetrafluoroethylene (PTFE)	15.24 m	50 ft	Aluminum, Copper, Tinned	Braid	Solid
Amphenol Times Microwave Systems LMR-600-PVC-W	Poly-Vinyl Chloride (PVC)		Coaxial	85 °C	-40 °C	Aluminum, Copper Coated		85	11.56 mm	0.455 in	50 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)			Aluminum, Copper, Tinned	Braid	Solid
Amphenol Times Microwave Systems LMR-600-LSZH	Low Smoke Zero Halogen (LSZH), Polyethylene (PE)	Black	Coaxial	85 °C	-40 °C	Copper, Bare		85	11.56 mm	0.455 in	50 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)			Aluminum, Copper, Tinned	Braid	Solid	1 ft	300 mm
Amphenol Times Microwave Systems LMR-600-75-FR	Polyethylene (PE)	Black	Coaxial	85 °C	-40 °C	Aluminum, Copper Coated	Fire Retardant	87	11.56 mm	0.455 in	75 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)			Aluminum, Copper, Tinned	Braid	Solid
Amphenol Times Microwave Systems LMR-600-DB	Polyethylene (PE)	Black	Coaxial	85 °C	-40 °C	Aluminum, Copper Coated	Direct Burial, Watertight	85	11.56 mm	0.455 in	50 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)	15.24 m, 76.2 m	50 ft, 3000 "	Aluminum, Copper, Tinned	Braid	Solid	10 ft, 100 ft	3.05 m, 30.48 m
Amphenol Times Microwave Systems LMR-600	Polyethylene (PE)	Black	Coaxial	85 °C	-40 °C	Aluminum, Copper Coated		85	11.56 mm	0.455 in	50 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)	15.24 m, 76.2 m	50 ft, 3000 "	Aluminum, Copper, Tinned	Braid	Solid	10 ft, 100 ft	3.05 m, 30.48 m
Amphenol Times Microwave Systems LMR-600-75-DB	Polyethylene (PE)	Black	Coaxial	85 °C	-40 °C	Aluminum, Copper Coated	Direct Burial	87	11.56 mm	0.455 in	75 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)			Aluminum, Copper, Tinned	Braid	Solid
Amphenol Times Microwave Systems LMR-600-UF	Thermoplastic Elastomer (TPE)	Black	Coaxial	85 °C	-40 °C	Copper, Bare		87	11.56 mm	0.455 in	50 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)	15.24 m, 76.2 m	50 ft, 3000 "	Aluminum, Copper, Tinned	Braid		100 ft	30.48 m
Amphenol Times Microwave Systems LMR-600-FR-PVC	Poly-Vinyl Chloride (PVC), Riser	Black	Coaxial - Riser	85 °C	-40 °C	Aluminum, Copper Coated	Fire Retardant	85	11.56 mm	0.455 in	50 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)			Aluminum, Copper, Tinned	Braid	Solid
Amphenol Times Microwave Systems LMR-600-FR	Polyethylene (PE), Riser	Black	Coaxial - Riser	85 °C	-40 °C	Aluminum, Copper Coated	Fire Retardant	85	11.56 mm	0.455 in	50 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)	15.24 m, 76.2 m	50 ft, 3000 "	Aluminum, Copper, Tinned	Braid	Solid	10 ft, 100 ft	3.05 m, 30.48 m
