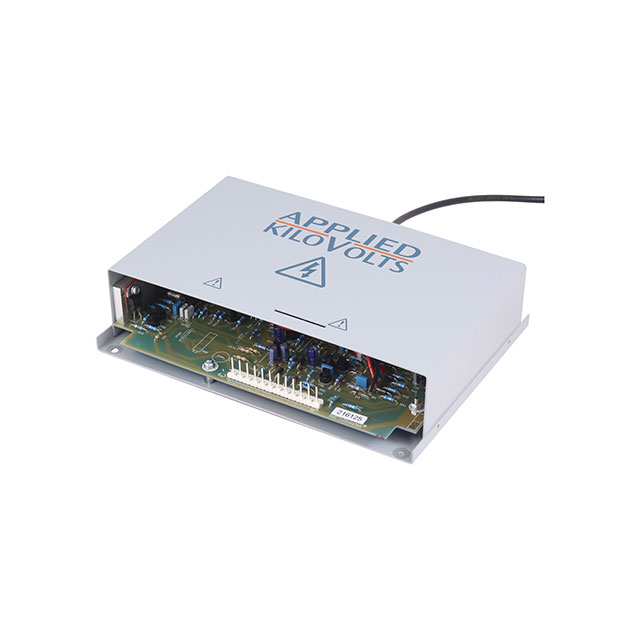

HP010RAA025
ActiveApplied Kilovolts Ltd.
DC/DC CNVRTR 20V-10000V 10W
HP010RAA025
ActiveApplied Kilovolts Ltd.
DC/DC CNVRTR 20V-10000V 10W
Description
General part information
HP010RAA025
Enclosed, High Voltage DC DC Converter 1 Output ±20V ~ ±10000V 1mA 26.4V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | HP010RAA025 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL, cURus |
| Current - Output (Max) | 1 mA |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 10 W |
| Size / Dimension Height | 2.05 in |
| Size / Dimension Length | 6.1 in |
| Size / Dimension Width | 8.5 in |
| Type | High Voltage, Enclosed |
| Voltage - Input (Max) | 26.4 V |
| Voltage - Input (Min) | 21.6 V |
| Voltage - Output 1 (Max) | 10000 V |
| Voltage - Output 1 (Min) | 20 V |
