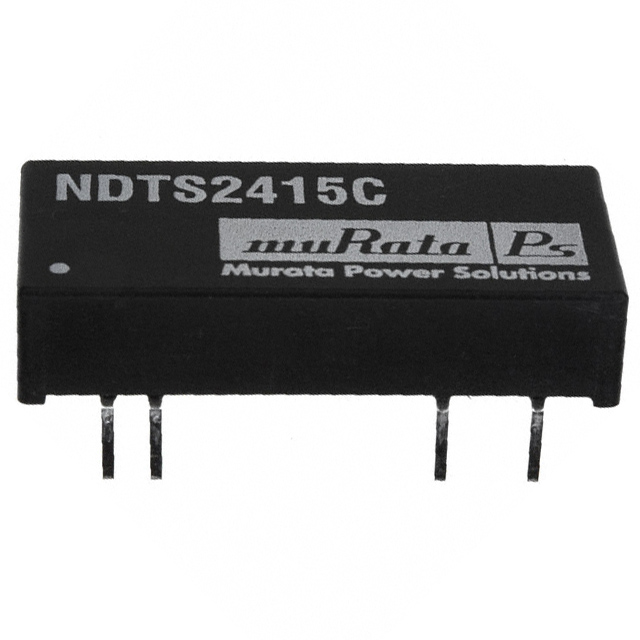

NDTS2415C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 15V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NDTS2415C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 15V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NDTS2415C | NDTS24 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 200 mA | 200 - 909 mA |
| Efficiency | 84 % | 71 - 84 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 24-DIP Module (600 mil, 8 Leads) | 24-DIP Module (600 mil, 8 Leads) |
| Power (Watts) | 3 W | 3 W |
| Size / Dimension [x] | 1.27 in | 1.27 in |
| Size / Dimension [x] | 32.3 mm | 32.3 mm |
| Size / Dimension [y] | 0.58 " | 0.58 " |
| Size / Dimension [y] | 14.7 mm | 14.7 mm |
| Size / Dimension [z] | 6.9 mm | 6.9 mm |
| Size / Dimension [z] | 0.27 " | 0.27 " |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V | 36 V |
| Voltage - Input (Min) [Min] | 18 V | 18 V |
| Voltage - Isolation | 1000 V | 1000 V |
| Voltage - Output 1 | 15 V | 3.3 - 15 V |
NDTS24 Series
DC DC CONVERTER 15V 3W
| Part | Mounting Type | Number of Outputs | Voltage - Input (Max) [Max] | Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Efficiency | Applications | Voltage - Input (Min) [Min] | Voltage - Isolation | Current - Output (Max) [Max] | Package / Case | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NDTS2415C | Through Hole | 1 | 36 V | Isolated Module | 85 °C | -40 °C | 15 V | 84 % | ITE (Commercial) | 18 V | 1000 V | 200 mA | 24-DIP Module (600 mil, 8 Leads) | 6.9 mm | 0.27 " | 0.58 " | 14.7 mm | 1.27 in | 32.3 mm | 3 W |
Murata Power Solutions Inc. NDTS2405C | Through Hole | 1 | 36 V | Isolated Module | 85 °C | -40 °C | 5 V | 78 % | ITE (Commercial) | 18 V | 1000 V | 600 mA | 24-DIP Module (600 mil, 8 Leads) | 6.9 mm | 0.27 " | 0.58 " | 14.7 mm | 1.27 in | 32.3 mm | 3 W |
Murata Power Solutions Inc. NDTS2403C | Through Hole | 1 | 36 V | Isolated Module | 85 °C | -40 °C | 3.3 V | 71 % | ITE (Commercial) | 18 V | 1000 V | 909 mA | 24-DIP Module (600 mil, 8 Leads) | 6.9 mm | 0.27 " | 0.58 " | 14.7 mm | 1.27 in | 32.3 mm | 3 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NDTS24 Series
Isolated Module DC DC Converter 1 Output 15V 200mA 18V - 36V Input
