A5645H

Active

Antenova

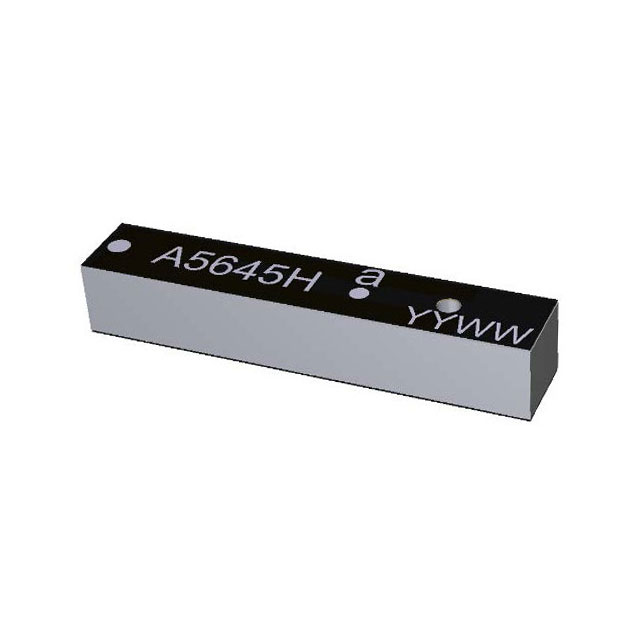

A5645H MICA 2.4 GHZ SMD HALOGEN

Search across all available documentation for this part.

Active

Antenova

A5645H MICA 2.4 GHZ SMD HALOGEN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A5645H	A5645 Series

Antenna Type	Chip	Chip
Applications	Bluetooth, 802.11a/b/g/n, Zigbee™, Wi-Fi	Bluetooth, 802.11a/b/g/n, Zigbee™, Wi-Fi
For Use With/Related Products	-	A5645H
Frequency	-	2.5 GHz
Frequency	-	2.4 GHz
Frequency Range [Max]	2.5 GHz	2.5 GHz
Frequency Range [Min]	2.4 GHz	2.4 GHz
Height (Max)	3.3 mm	3.3 mm
Height (Max) [Max] [z]	0.13 in	0.13 in
Mounting Type	Surface Mount	Surface Mount
Number of Bands	1	1
RF Family/Standard	WiFi, Bluetooth, 802.15.4	WiFi, Bluetooth, 802.15.4
Supplied Contents	-	Board(s)
Termination	Solder	Solder
Type	-	Antenna
VSWR	1.8	1.8

A5645H MICA 2.4 GHZ SMD HALOGEN

Part	Antenna Type	Applications	VSWR	Height (Max) [Max] [z]	Height (Max)	Number of Bands	Mounting Type	Termination	RF Family/Standard	Frequency Range [Max]	Frequency Range [Min]	Supplied Contents	For Use With/Related Products	Frequency [Max]	Frequency [Min]	Type
Antenova A5645H	Chip	802.11a/b/g/n, Bluetooth, Wi-Fi, Zigbee™	1.8	0.13 in	3.3 mm	1	Surface Mount	Solder	802.15.4, Bluetooth, WiFi	2.5 GHz	2.4 GHz
Antenova A5645H-EVB-1												Board(s)	A5645H	2.5 GHz	2.4 GHz	Antenna

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA 802.11a/b/g/n, Bluetooth, Wi-Fi, ZigBee™ Chip Solder Surface Mount
