C10-7100
ActiveTWIN INDUSTRIES

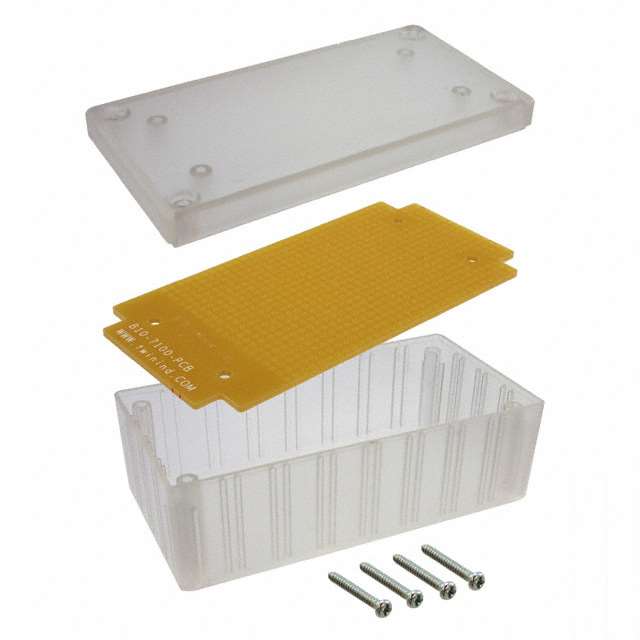

CLEAR ABS PLASTIC PROJECT BOX WITH MATCHING NON-PLATED PROTOBOARD; FR4 0.062". BOX DIM = 4.5" X 2.3" X 1.7"
C10-7100
ActiveTWIN INDUSTRIES
CLEAR ABS PLASTIC PROJECT BOX WITH MATCHING NON-PLATED PROTOBOARD; FR4 0.062". BOX DIM = 4.5" X 2.3" X 1.7"
Description
General part information
C10-7100
Box Plastic, ABS Clear Cover Included 4.500" L x 2.300" W (114.30mm x 58.42mm) X 1.700" (43.18mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | C10-7100 |
|---|---|
| Area (L x W) | 10.4 in² |
| Color | Clear |
| Container Type | Box |
| Design | Cover Included |
| Features | Prototype Board |
| Height | 1.7 in |
| Material | ABS, Plastic |
| Size / Dimension Length | 4.5 in |
| Size / Dimension Width | 2.3 in |
| Thickness | 0.062 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
