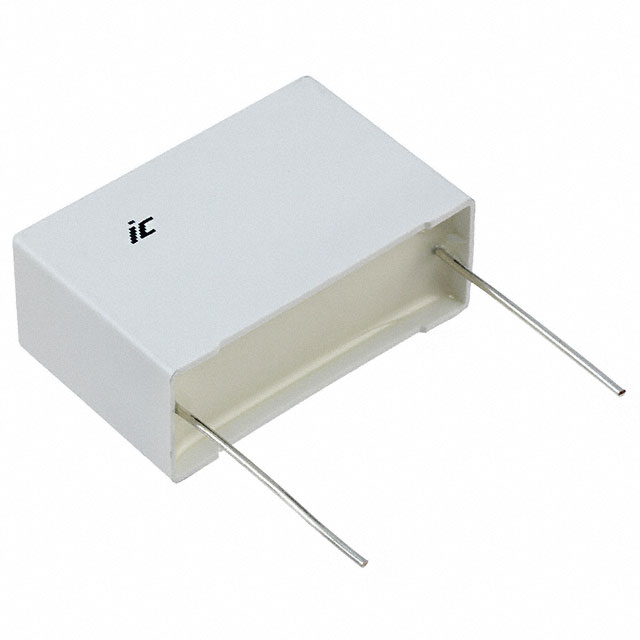

Specification	474PPB162K

Applications	DV/DT, High Pulse, Commutation, Snubber
Capacitance	0.47 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max)	1.457 in
Lead Spacing	1.476 in
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	Radial
Size / Dimension Length	1.673 in
Size / Dimension Width	1.102 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	650 VAC
Voltage Rating - DC	1600 V
