9617 060500

Active

Belden Inc.

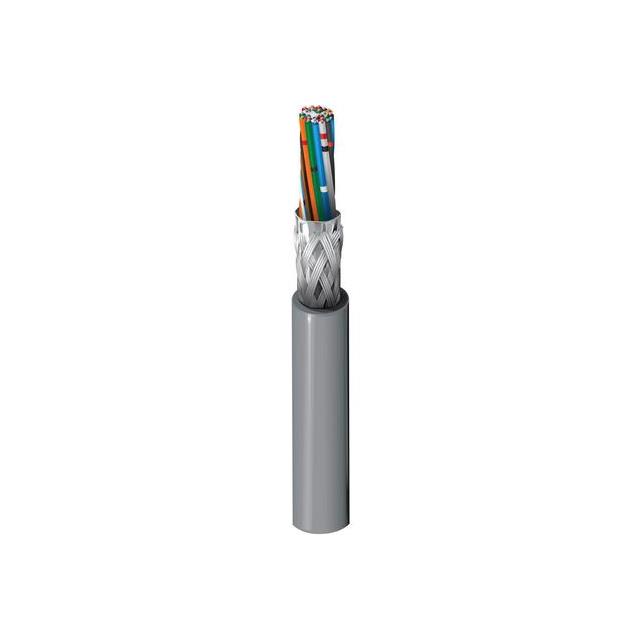

CABLE 25COND 24AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 25COND 24AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	9617 060500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.37 in
Jacket (Insulation) Diameter [diameter]	9.4 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.94 mm
Jacket (Insulation) Thickness	0.037 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	25
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Ratings	Jacket (Insulation) Material	Conductor Material	Wire Gauge	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Usage	Shield Material	Number of Conductors	Cable Type	Shield Type	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 9617 060100	UL Style 2464	Poly-Vinyl Chloride (PVC)	Copper Tinned	24 AWG	30.5 m	100 ft	-30 ░C	80 C	0.37 in	9.4 mm	65 % 100 %	Computer	Aluminum Copper Tinned	25	Multi-Conductor	Braid Foil	300 V	0.94 mm	0.037 in	Poly-Vinyl Chloride (PVC)	Chrome	32 AWG	7
Belden Inc. 9617 060500	UL Style 2464	Poly-Vinyl Chloride (PVC)	Copper Tinned	24 AWG	152.4 m	500 '	-30 ░C	80 C	0.37 in	9.4 mm	65 % 100 %	Computer	Aluminum Copper Tinned	25	Multi-Conductor	Braid Foil	300 V	0.94 mm	0.037 in	Poly-Vinyl Chloride (PVC)	Chrome	32 AWG	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 18.04

General part information

25 Conductor Multi-Conductor Cable Chrome 24 AWG Foil, Braid 500.0' (152.4m)
