FB100505T-102Y-S-3
ActiveCal-Chip Electronics, Inc.

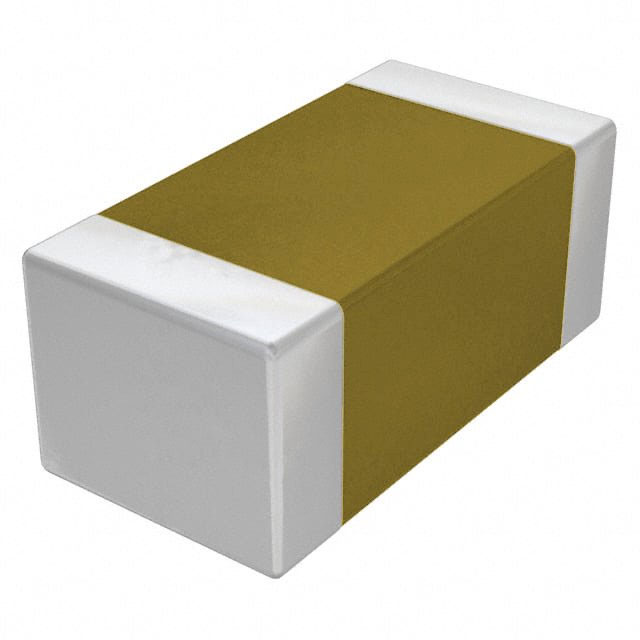

FERRITE BEAD 1 KOHM 0402 1LN
FB100505T-102Y-S-3
ActiveCal-Chip Electronics, Inc.
FERRITE BEAD 1 KOHM 0402 1LN
Description
General part information
FB100505T-102Y-S-3
1 kOhms @ 100 MHz 1 Signal Line Ferrite Bead 0402 (1005 Metric) 350mA 490mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | FB100505T-102Y-S-3 |
|---|---|
| Current Rating (Max) | 350 mA |
| DC Resistance (DCR) (Max) | 490 mOhm |
| Filter Type | Signal Line |
| Height (Max) | 0.022 in, 0.024 in |
| Impedance | 1 kOhms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension Length | 0.039 in |
| Size / Dimension Width | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
