MW2S151MNN1835
ActiveChinsan (Elite)

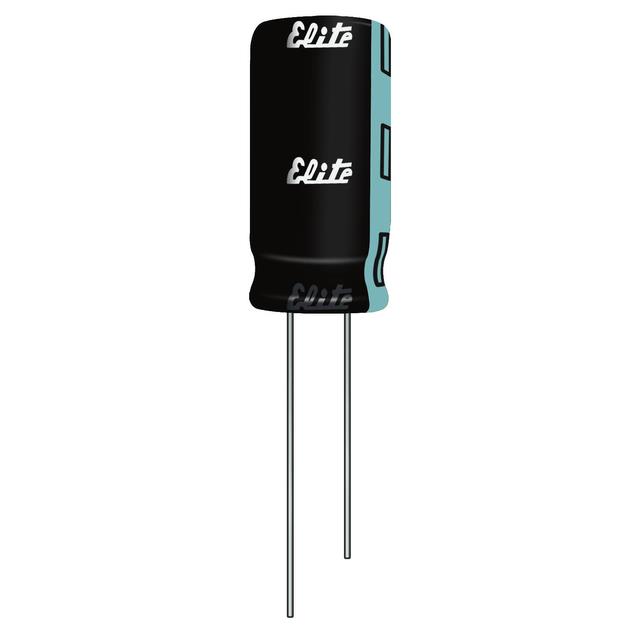

CAP ALUM 150UF 20% 420V RADIAL
MW2S151MNN1835
ActiveChinsan (Elite)
CAP ALUM 150UF 20% 420V RADIAL
Description
General part information
MW2S151MNN1835
150 µF 420 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MW2S151MNN1835 |
|---|---|
| Applications | General Purpose |
| Capacitance | 150 µF |
| Height - Seated (Max) | 1.457 in |
| Lead Spacing | 0.295 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 1.25 A, 1.413 A |
| Size / Dimension Diameter | 0.709 in |
| Tolerance | 20 % |
| Voltage - Rated | 420 V |
