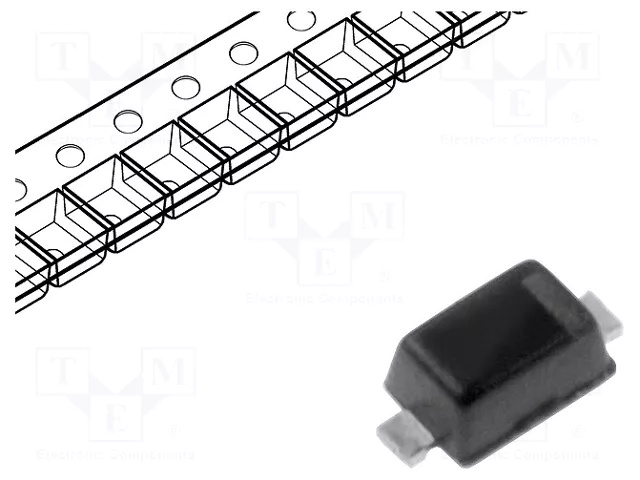

BZT52C3V0T-7
ActiveDiodes Inc
ZENER SINGLE DIODE, 3 V, 300 MW, SOD-523, 2 PINS, 150 °C, SURFACE MOUNT
BZT52C3V0T-7
ActiveDiodes Inc
ZENER SINGLE DIODE, 3 V, 300 MW, SOD-523, 2 PINS, 150 °C, SURFACE MOUNT
Description
General part information
BZT52C3V0T-7
Ultra-small surface mount package
Flat lead package design for low profile and high power dissipation
Lead-free design
Technical Specifications
Parameters and characteristics for this part
| Specification | BZT52C3V0T-7 |
|---|---|
| Current - Reverse Leakage | 10 µA |
| Impedance (Max) (Zzt) | 95 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | SOD-523, SC-79 |
| Package Name | SOD-523 |
| Power - Max | 300 mW |
| Tolerance | 7 % |
| Voltage - Forward (Vf) (Max) | 900 mV |
| Voltage - Zener (Nom) (Vz) | 3 V |
