U-1
ActiveCurtis Industries

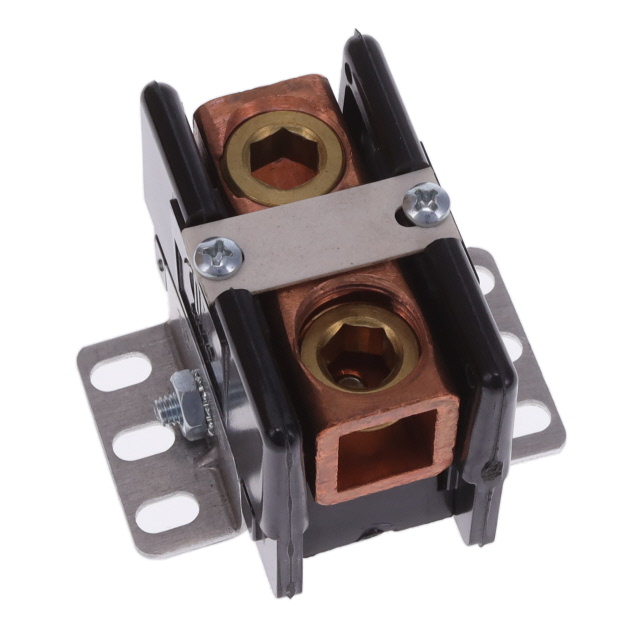

CONN BARRIER STRIP 1CIRCUIT
U-1
ActiveCurtis Industries
CONN BARRIER STRIP 1CIRCUIT
Description
General part information
U-1
1 Circuit Barrier Block Connector Screws
Technical Specifications
Parameters and characteristics for this part
| Specification | U-1 |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | Closed |
| Current Rating | 250 A |
| Features | Flange |
| Material - Insulation | Phenol Formaldehyde (Phenolic) |
| Material Flammability Rating | UL94 V-1 |
| Mounting Type | Chassis, Panel |
| Number of Circuits | 1 |
| Number of Rows | 2 |
| Number of Wire Entries | 2 |
| Operating Temperature | 150 °C |
| Terminal Block Type | Barrier Block |
| Terminal Screw Material | Copper |
| Top Termination | Screws |
| Voltage Rating | 600 V |
| Wire Gauge | 250MCM (kcmil), 6 AWG |
| Wire Gauge (AWG) | 6 AWG |
| Wire Gauge (MCM) | 250 MCM |
| Wire Gauge (MCM) (Max) | 6 MCM |
| Wire Gauge (MCM) (Min) | 250 MCM |
