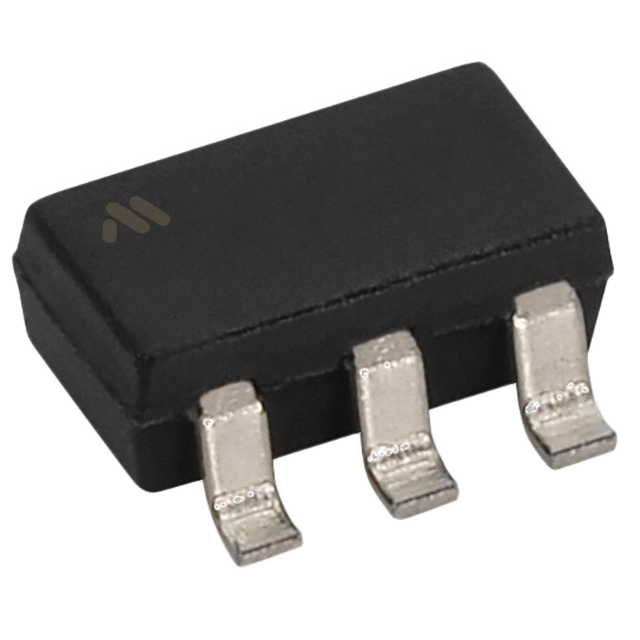

MM3513C01NRH
ActiveMitsumi Electric Company Ltd
1.5V~5.5V LITHIUM-ION/POLYMER 1~5 SOT-25A BATTERY MANAGEMENT ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MM3513C01NRH
ActiveMitsumi Electric Company Ltd
1.5V~5.5V LITHIUM-ION/POLYMER 1~5 SOT-25A BATTERY MANAGEMENT ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MM3513C01NRH | MM3513 Series |
|---|---|---|
| Battery Chemistry | Lithium Ion/Polymer | Lithium Ion/Polymer |
| Function | Battery Monitor | Battery Monitor |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Cells | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | SC-74A, SOT-753 | SC-74A, SOT-753 |
| Supplier Device Package | SOT-25A | SOT-25A |
MM3513 Series
IC, MULTI CELL, CELL BALANCE, MM
| Part | Package / Case | Battery Chemistry | Number of Cells | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Mounting Type | Function |
|---|---|---|---|---|---|---|---|---|
Mitsumi Electric Company Ltd MM3513L01NRH | SC-74A, SOT-753 | Lithium Ion/Polymer | 1 | 85 °C | -40 °C | SOT-25A | Surface Mount | Battery Monitor |
Mitsumi Electric Company Ltd MM3513B01NRH | SC-74A, SOT-753 | Lithium Ion/Polymer | 1 | 85 °C | -40 °C | SOT-25A | Surface Mount | Battery Monitor |
Mitsumi Electric Company Ltd MM3513C01NRH | SC-74A, SOT-753 | Lithium Ion/Polymer | 1 | 85 °C | -40 °C | SOT-25A | Surface Mount | Battery Monitor |
Mitsumi Electric Company Ltd MM3513A01NRH | SC-74A, SOT-753 | Lithium Ion/Polymer | 1 | 85 °C | -40 °C | SOT-25A | Surface Mount | Battery Monitor |
Mitsumi Electric Company Ltd MM3513R01NRH | SC-74A, SOT-753 | Lithium Ion/Polymer | 1 | 85 °C | -40 °C | SOT-25A | Surface Mount | Battery Monitor |
Mitsumi Electric Company Ltd MM3513K01NRH | SC-74A, SOT-753 | Lithium Ion/Polymer | 1 | 85 °C | -40 °C | SOT-25A | Surface Mount | Battery Monitor |
Mitsumi Electric Company Ltd MM3513D02NRH | SC-74A, SOT-753 | Lithium Ion/Polymer | 1 | 85 °C | -40 °C | SOT-25A | Surface Mount | Battery Monitor |
Mitsumi Electric Company Ltd MM3513F01NRH | SC-74A, SOT-753 | Lithium Ion/Polymer | 1 | 85 °C | -40 °C | SOT-25A | Surface Mount | Battery Monitor |
Mitsumi Electric Company Ltd MM3513J01NRH | SC-74A, SOT-753 | Lithium Ion/Polymer | 1 | 85 °C | -40 °C | SOT-25A | Surface Mount | Battery Monitor |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.76 | |
| 10 | $ 0.67 | |||
| 25 | $ 0.63 | |||
| 100 | $ 0.51 | |||
| 250 | $ 0.47 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.32 | |||
| Digi-Reel® | 1 | $ 0.76 | ||
| 10 | $ 0.67 | |||
| 25 | $ 0.63 | |||
| 100 | $ 0.51 | |||
| 250 | $ 0.47 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.32 | |||
| Tape & Reel (TR) | 3000 | $ 0.29 | ||
| 6000 | $ 0.27 | |||
| 15000 | $ 0.26 | |||
| 30000 | $ 0.25 | |||
| LCSC | Piece | 1 | $ 0.67 | |
| 200 | $ 0.27 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.25 | |||
Description
General part information
MM3513 Series
Battery Battery Monitor IC Lithium Ion/Polymer SOT-25A
