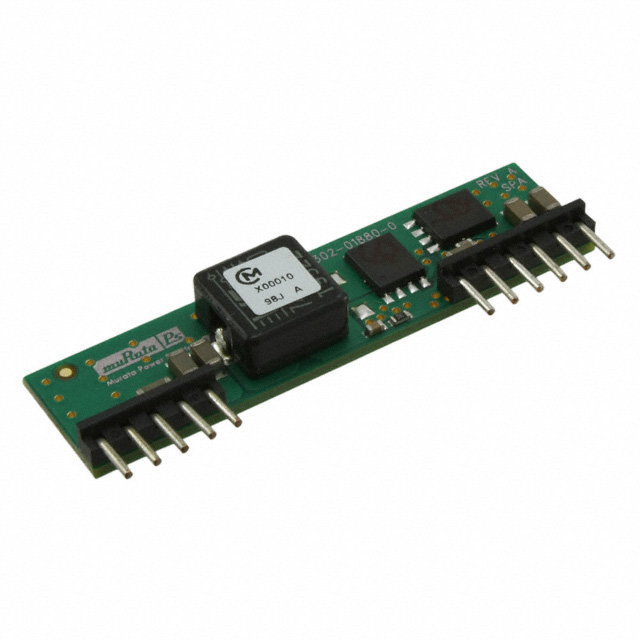

OKX-T/10-W5N-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 0.75-3.63V 33W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OKX-T/10-W5N-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 0.75-3.63V 33W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | OKX-T/10-W5N-C | OKX-T Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | - | Active Low, Enable, Active High |
| Current - Output (Max) [Max] | 10 A | 3 - 16 A |
| Efficiency | 95.5 % | 93 - 95.5 % |
| Features | OTP, UVLO, SCP, Remote On/Off, OCP | OTP, UVLO, SCP, Remote On/Off, OCP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 11-SIP Module | 11-SIP Module, 5-SIP Module |
| Power (Watts) | 33 W | 15 - 80 W |
| Size / Dimension [x] | 50.8 mm | 22.9 - 50.8 mm |
| Size / Dimension [x] | 2 in | 0.9 - 2 in |
| Size / Dimension [y] | 0.37 " | 0.28 - 0.37 " |
| Size / Dimension [y] | 9.4 mm | 7.1 - 9.4 mm |
| Size / Dimension [z] | 0.5 in | 0.4 - 0.5 in |
| Size / Dimension [z] | 12.7 mm | 10.2 - 12.7 mm |
| Type | Non-Isolated PoL Module | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 5.5 V | 5.5 - 14 V |
| Voltage - Input (Min) [Min] | 2.4 V | 2.4 - 8.3 V |
| Voltage - Output 1 [Max] | 3.63 V | 3.6 - 5.5 V |
| Voltage - Output 1 [Min] | 0.75 V | 0.75 - 0.7525 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
OKX-T Series
DC-DC CONVERTER, 5A, 3.6V ROHS COMPLIANT: YES
| Part | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Features | Number of Outputs | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Type | Voltage - Input (Min) [Min] | Package / Case | Applications | Efficiency | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. OKX-T/5-W5N-C | ||||||||||||||||||||||
Murata Power Solutions Inc. OKX-T/10-W5N-C | Through Hole | 85 °C | -40 °C | 33 W | OCP, OTP, Remote On/Off, SCP, UVLO | 1 | 10 A | 5.5 V | Non-Isolated PoL Module | 2.4 V | 11-SIP Module | ITE (Commercial) | 95.5 % | 50.8 mm | 0.37 " | 2 in | 0.5 in | 12.7 mm | 9.4 mm | 3.63 V | 0.75 V | |
Murata Power Solutions Inc. OKX-T/16-W5N-C | ||||||||||||||||||||||
Murata Power Solutions Inc. OKX-T/16-D12N-C | Through Hole | 85 °C | -40 °C | 80 W | OCP, OTP, Remote On/Off, SCP, UVLO | 1 | 16 A | 14 V | Non-Isolated PoL Module | 8.3 V | 11-SIP Module | ITE (Commercial) | 94 % | 50.8 mm | 0.37 " | 2 in | 0.5 in | 12.7 mm | 9.4 mm | 5.5 V | 0.75 V | |
Murata Power Solutions Inc. OKX-T/5-W5N-C | Through Hole | 85 °C | -40 °C | 17 W | OCP, OTP, Remote On/Off, SCP, UVLO | 1 | 5 A | 5.5 V | Non-Isolated PoL Module | 2.4 V | 5-SIP Module | ITE (Commercial) | 95 % | 22.9 mm | 0.28 in | 0.9 " | 0.4 " | 10.2 mm | 7.1 mm | 3.6 V | 0.7525 V | Active Low, Enable |
Murata Power Solutions Inc. OKX-T/3-D12N-C | ||||||||||||||||||||||
Murata Power Solutions Inc. OKX-T/3-D12P-C | Through Hole | 85 °C | -40 °C | 15 W | OCP, OTP, Remote On/Off, SCP, UVLO | 1 | 3 A | 13.8 V | Non-Isolated PoL Module | 8.3 V | 5-SIP Module | ITE (Commercial) | 93 % | 22.9 mm | 0.28 in | 0.9 " | 0.4 " | 10.2 mm | 7.1 mm | 5.5 V | 0.7525 V | Active High, Enable |
Murata Power Solutions Inc. OKX-T/10-D12P-C | Through Hole | 85 °C | -40 °C | 50 W | OCP, OTP, Remote On/Off, SCP, UVLO | 1 | 10 A | 14 V | Non-Isolated PoL Module | 8.3 V | 11-SIP Module | ITE (Commercial) | 94.5 % | 50.8 mm | 0.37 " | 2 in | 0.5 in | 12.7 mm | 9.4 mm | 5.5 V | 0.75 V | Active High, Enable |
Murata Power Solutions Inc. OKX-T/5-D12N-C | ||||||||||||||||||||||
Murata Power Solutions Inc. OKX-T/16-W5N-C | Through Hole | 85 °C | -40 °C | 53 W | OCP, OTP, Remote On/Off, SCP, UVLO | 1 | 16 A | 5.5 V | Non-Isolated PoL Module | 2.4 V | 11-SIP Module | ITE (Commercial) | 95 % | 50.8 mm | 0.37 " | 2 in | 0.5 in | 12.7 mm | 9.4 mm | 3.63 V | 0.75 V |
Description
General part information
OKX-T Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.75 ~ 3.63V 10A 2.4V - 5.5V Input
