Description
General part information

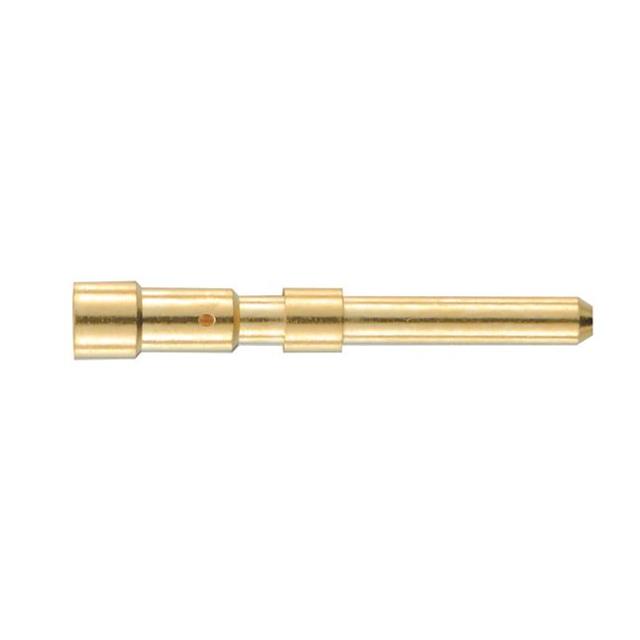

09151006111
Pin Contact 17-26 AWG Size 1.5mm Crimp Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | 09151006111 |
|---|---|
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Size | 1.5 mm |
| Contact Termination | Crimp |
| Contact Type | Pin |
| Type | Machined |
| Wire Gauge or Range - AWG (Max) | 25.5 AWG |
| Wire Gauge or Range - AWG (Min) | 17 AWG |
| Wire Gauge or Range - mm² (Maximum) | 1 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.14 mm² |
