CY15B104QN-50PZXI

Active

Infineon Technologies

IC FRAM 4MBIT SPI 50MHZ 8DIP

Deep-Dive with AI

Search across all available documentation for this part.

CY15B104QN-50PZXI

Active

Infineon Technologies

IC FRAM 4MBIT SPI 50MHZ 8DIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CY15B104QN-50PZXI

Access Time	8 ns
Clock Frequency	50 MHz
Grade	Automotive
Memory Format	FRAM
Memory Interface	SPI
Memory Organization	512 K
Memory Size	512 kb
Memory Type	Non-Volatile
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	0.3 in

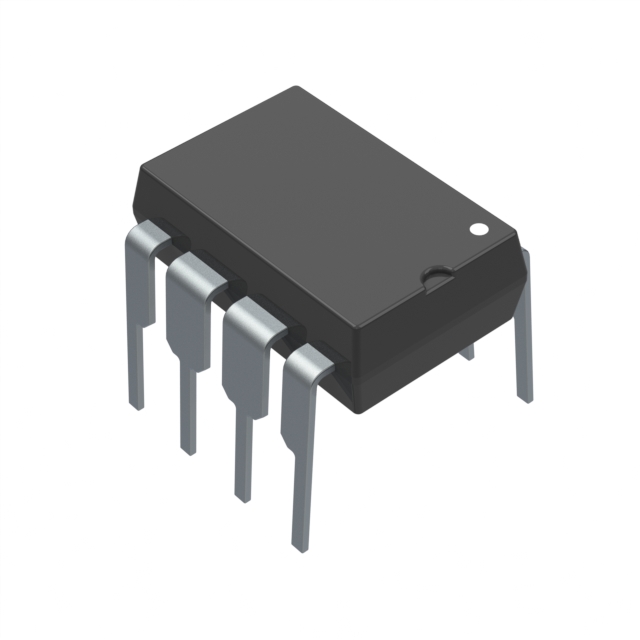

Package / Case	8-DIP
Package / Case	7.62 mm
Qualification	AEC-Q100
Supplier Device Package	8-PDIP
Technology	FRAM (Ferroelectric RAM)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.8 V

CY15B104 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Grade	Package / Case	Qualification	Access Time	Memory Type	Supplier Device Package	Mounting Type	Memory Organization	Memory Interface	Clock Frequency	Memory Size	Memory Format	Voltage - Supply [Max]	Voltage - Supply [Min]	Technology	Package / Case [y]	Package / Case [x]	Package / Case	Package / Case
Infineon Technologies CY15B104QN-20LPXIT	85 °C	-40 °C	Automotive	8-UQFN	AEC-Q100	20 ns	Non-Volatile	8-GQFN (3.23x3.28)	Surface Mount	512 K	SPI	20 MHz	512 kb	FRAM	3.6 V	1.8 V	FRAM (Ferroelectric RAM)
Infineon Technologies CY15B104QI-20LPXCT	70 °C	0 °C		8-UQFN		20 ns	Non-Volatile	8-GQFN (3.23x3.28)	Surface Mount	512 K	SPI	20 MHz	512 kb	FRAM	3.6 V	1.8 V	FRAM (Ferroelectric RAM)
Infineon Technologies CY15B104Q-SXIT	85 °C	-40 °C		8-SOIC			Non-Volatile	8-SOIC	Surface Mount	512 K	SPI	40 MHz	512 kb	FRAM	3.6 V	2 V	FRAM (Ferroelectric RAM)	5.3 mm	0.209 "
Infineon Technologies CY15B104QSN-108SXIT	85 °C	-40 °C		8-SOIC			Non-Volatile	8-SOIC	Surface Mount	512 K	SPI - Quad I/O	108 MHz	512 kb	FRAM	3.6 V	1.8 V	FRAM (Ferroelectric RAM)	5.3 mm	0.209 "
Infineon Technologies CY15B104QSN-108LPXIT	85 °C	-40 °C		8-UQFN			Non-Volatile	8-GQFN (3.23x3.28)	Surface Mount	512 K	SPI - Quad I/O	108 MHz	512 kb	FRAM	3.6 V	1.8 V	FRAM (Ferroelectric RAM)
Infineon Technologies CY15B104Q-LHXIT	85 °C	-40 °C		8-WDFN Exposed Pad			Non-Volatile	8-DFN (5x6)	Surface Mount	512 K	SPI	40 MHz	512 kb	FRAM	3.6 V	2 V	FRAM (Ferroelectric RAM)
Infineon Technologies CY15B104QI-20LPXIT	85 °C	-40 °C		8-UQFN		20 ns	Non-Volatile	8-GQFN (3.23x3.28)	Surface Mount	512 K	SPI	20 MHz	512 kb	FRAM	3.6 V	1.8 V	FRAM (Ferroelectric RAM)
Infineon Technologies CY15B104QN-50LPXIT	85 °C	-40 °C	Automotive	8-UQFN	AEC-Q100	8 ns	Non-Volatile	8-GQFN (3.23x3.28)	Surface Mount	512 K	SPI	50 MHz	512 kb	FRAM	3.6 V	1.8 V	FRAM (Ferroelectric RAM)
Infineon Technologies CY15B104QN-50PZXI	85 °C	-40 °C	Automotive	8-DIP	AEC-Q100	8 ns	Non-Volatile	8-PDIP	Through Hole	512 K	SPI	50 MHz	512 kb	FRAM	3.6 V	1.8 V	FRAM (Ferroelectric RAM)			0.3 in	7.62 mm
Infineon Technologies CY15B104QN-20LPXCT	70 °C	0 °C	Automotive	8-UQFN	AEC-Q100	20 ns	Non-Volatile	8-GQFN (3.23x3.28)	Surface Mount	512 K	SPI	20 MHz	512 kb	FRAM	3.6 V	1.8 V	FRAM (Ferroelectric RAM)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	265	$ 16.02

Description

General part information

CY15B104 Series

FRAM (Ferroelectric RAM) Memory IC 4Mbit SPI 50 MHz 8 ns 8-PDIP

Documents

Technical documentation and resources

No documents available
