Description
General part information

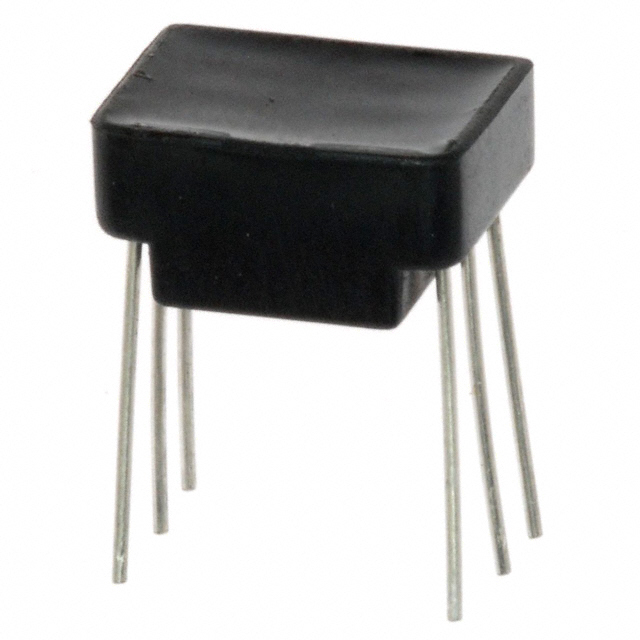

G506
2mH Isolation and Data Interface (Encapsulated) Pulse Transformer 2:1:1 Ter Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | G506 |
|---|---|
| ET (Volt-Time) | 16 VµS |
| Height - Seated (Max) | 0.25 in |
| Inductance | 2 mH |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Length | 0.35 in |
| Size / Dimension Width | 0.5 in |
| Transformer Type | Data Interface (Encapsulated), Isolation |
| Turns Ratio - Primary:Secondary | 2:1:1 Ter |
