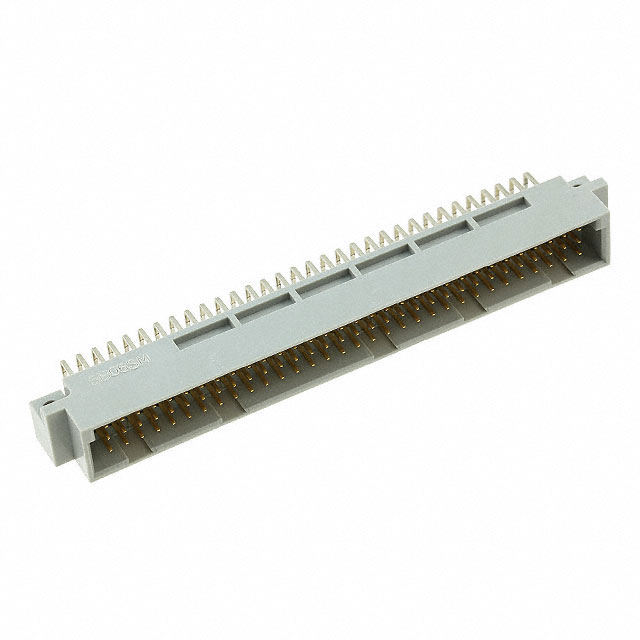

Specification	PCN10A-96P-2.54DS(72)

Connector Type	Header, Male Pins
Contact Finish	Gold
Contact Finish Thickness	8 µin
Current Rating	2 A
Material - Insulation	PBT, Polybutylene Terephthalate
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	96
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Pitch	0.1 in
Termination	Solder

PCN10 Series

DIN 41612 Connectors 32P R/A PIN HDR T/H CIRCUT PROTECT FUNCT

...

Part	Number of Positions	Pitch	Number of Rows	Connector Type	Contact Finish	Termination	Number of Positions Loaded	Mounting Type	Contact Finish Thickness	Style	Current Rating	Material - Insulation	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Features
Hirose Electric Co Ltd PCN10A-48P-2.54DS(77)	48	0.1 in	3	Header Male Pins	Gold	Solder	All	Right Angle Through Hole
Hirose Electric Co Ltd PCN10A-20P-2.54DS(72)	20	0.1 in	2	Header Male Pins	Gold	Solder	All	Right Angle Through Hole	8 µin
Hirose Electric Co Ltd PCN10A-32P-2.54DS(72)	32	0.1 in	2	Header Male Pins	Gold	Solder	All	Right Angle Through Hole	8 µin	B	2 A	PBT Polybutylene Terephthalate	-55 °C	85 °C	UL94 V-0
Hirose Electric Co Ltd PCN10C-44S-2.54DS(72)	44	0.1 in	2	Female Sockets Receptacle	Gold	Solder	All	Right Angle Through Hole	8 µin	B	2 A	PBT Polybutylene Terephthalate	-55 °C	85 °C	UL94 V-0
Hirose Electric Co Ltd PCN10MC-32P-2.54DS(71)	32	0.1 in	2	Header Male Pins	Gold	Solder	All	Right Angle Through Hole
Hirose Electric Co Ltd PCN10-64S-2.54WA(72)	64	0.1 in	2	Female Sockets Receptacle	Gold	Wire Wrap	All	Through Hole		B	2 A	PBT Polybutylene Terephthalate	-55 °C	85 °C	UL94 V-0
Hirose Electric Co Ltd PCN10-32S-2.54DSA(72)	32	0.1 in	2	Female Sockets Receptacle	Gold	Solder	All	Through Hole	8 µin	B
Hirose Electric Co Ltd PCN10EA-64S-2.54DSA(72)	64	0.1 in	2	Female Sockets Receptacle	Gold	Solder	All	Through Hole	8 µin		2 A	PBT Polybutylene Terephthalate	-55 °C	85 °C	UL94 V-0	Board Lock
Hirose Electric Co Ltd PCN10HC-16P-2.54DSA(72)	16	0.1 in	2	Header Male Pins	Gold	Solder	All	Through Hole	8 µin		2 A	PBT Polybutylene Terephthalate	-55 °C	85 °C	UL94 V-0
Hirose Electric Co Ltd PCN10EA-64P-2.54DS(77)	64	0.1 in	2	Header Male Pins	Gold	Solder	All	Right Angle Through Hole	8 µin		2 A	PBT Polybutylene Terephthalate	-55 °C	85 °C	UL94 V-0	Board Lock
