CONN WIRE IDC 4POS 26AWG SMD

Search across all available documentation for this part.

Active

KYOCERA AVX

CONN WIRE IDC 4POS 26AWG SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

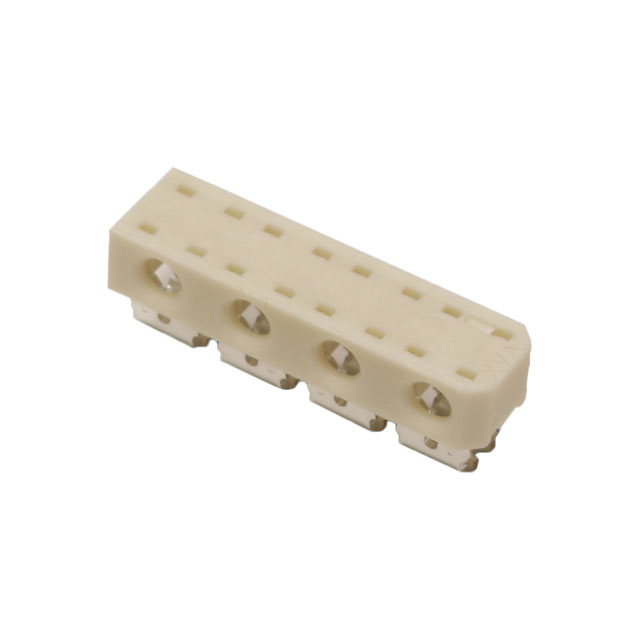

4 Position Individual Wires Connector White IDC 26 AWG Surface Mount

Technical documentation and resources

Specification	009176004873906	009176 Series

Board-Side Pitch	0.126 in	0.126 - 0.157 in
Board-Side Pitch	3.2 mm	3.2 - 4 mm
Cable Pitch	-	0.157 in
Cable Pitch	-	4 mm
Cable Pitch [custom]	0.126 in	0.126 in
Cable Pitch [custom]	3.2 mm	3.2 mm
Cable Termination	IDC	IDC
Color	White	White, Blue, Red, Yellow, Brown, Black, Green
Connector Type	Individual Wires	Individual Wires
Contact Finish	Tin	Tin
Features	Feed Through	Feed Through, Closed End
Mounting Type	Surface Mount	Surface Mount
Number of Positions	4	1 - 4
Number of Positions Loaded	All	All
Number of Rows	1	1
Wire Gauge	26 AWG	18 - 28 AWG
Wire Gauge	-	Stranded or Solid

Part	Cable Termination	Wire Gauge	Mounting Type	Connector Type	Features	Number of Positions Loaded	Cable Pitch [custom]	Cable Pitch [custom]	Board-Side Pitch	Board-Side Pitch	Number of Rows	Color	Contact Finish	Number of Positions	Wire Gauge
KYOCERA AVX 009176003873906	IDC	26 AWG	Surface Mount	Individual Wires	Feed Through	All	0.126 in	3.2 mm	0.126 in	3.2 mm	1	White	Tin
KYOCERA AVX 009176001711106	IDC	20 AWG	Surface Mount	Individual Wires	Feed Through	All					1	White	Tin	1
KYOCERA AVX 009176001873306	IDC		Surface Mount	Individual Wires	Feed Through	All					1	Blue	Tin	1
KYOCERA AVX 009176001722106	IDC		Surface Mount	Individual Wires	Feed Through	All					1	White	Tin	1
KYOCERA AVX 009176003884906	IDC	28 AWG	Surface Mount	Individual Wires	Feed Through	All	0.126 in	3.2 mm	0.126 in	3.2 mm	1	White	Tin		Stranded or Solid
KYOCERA AVX 009176001853506	IDC		Surface Mount	Individual Wires	Feed Through	All					1	Red	Tin	1
KYOCERA AVX 009176001863406	IDC		Surface Mount	Individual Wires	Feed Through	All					1	Yellow	Tin	1
KYOCERA AVX 009176004873906	IDC	26 AWG	Surface Mount	Individual Wires	Feed Through	All	0.126 in	3.2 mm	0.126 in	3.2 mm	1	White	Tin	4
KYOCERA AVX 009176002853906	IDC	22 AWG	Surface Mount	Individual Wires	Feed Through	All	0.126 in	3.2 mm	0.126 in	3.2 mm	1	White	Tin	2
KYOCERA AVX 009176001873506	IDC		Surface Mount	Individual Wires	Feed Through	All					1	Red	Tin	1
