4-794633-8

Active

TE Connectivity AMP Connectors

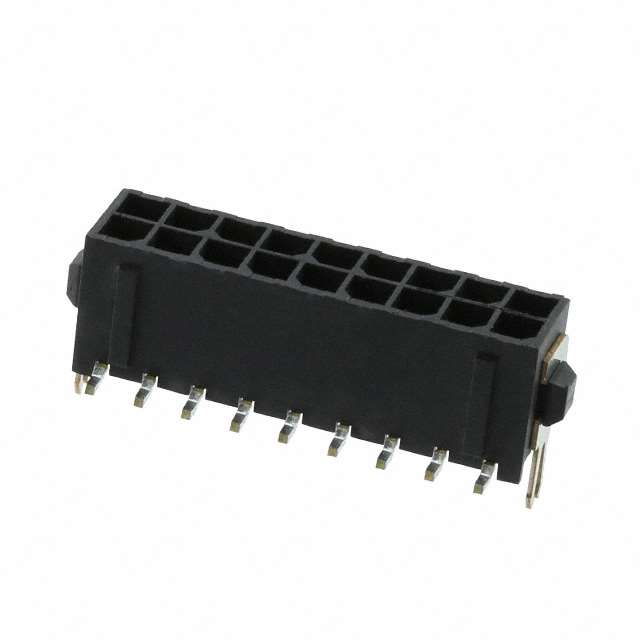

CONN HEADER SMD 18POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

4-794633-8

Active

TE Connectivity AMP Connectors

CONN HEADER SMD 18POS 3MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	350	$ 3.60

Description

General part information

794633 Series

Connector Header Surface Mount 18 position 0.118" (3.00mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4-794633-8	794633 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	-	Tin-Lead
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	2.54 çm	2.54 çm
Contact Finish Thickness - Mating	100 çin	100 çin
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Pick and Place, Board Lock	Pick and Place, Board Lock
Insulation Color	Black	Black
Insulation Height	9.25 mm	9.25 mm
Insulation Height	0.364 in	0.364 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	18	4 - 24
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.118 in	0.118 in
Pitch - Mating	3 mm	3 mm
Row Spacing - Mating	3 mm	3 mm
Row Spacing - Mating	0.118 in	0.118 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VDC	250 VDC

794633 Series

CONN HEADER SMD 16POS 3MM

Part	Number of Positions Loaded	Contact Finish - Mating	Insulation Height	Insulation Height	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Contact Type	Insulation Material	Applications	Number of Rows	Number of Positions	Pitch - Mating	Pitch - Mating	Features	Contact Shape	Contact Material	Shrouding	Voltage Rating	Fastening Type	Contact Finish - Post	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Current Rating (Amps)	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions
TE Connectivity AMP Connectors 1-794633-6	All	Tin-Lead	9.25 mm	0.364 in	Surface Mount	2.54 µm	100 µin	Board to Cable/Wire	Male Pin	Nylon, Polyamide (PA)	General Purpose	2	16	0.118 in	3 mm	Board Lock, Pick and Place	Square	Brass	Shrouded - 4 Wall	250 VDC	Locking Ramp	Tin-Lead	Solder	-40 °C	105 ░C	Header	Varies by Wire Gauge	UL94 V-0	3 mm	0.118 in	Black	2.54 çm	100 çin
TE Connectivity AMP Connectors 4-794633-8	All		9.25 mm	0.364 in	Surface Mount	2.54 µm	100 µin	Board to Cable/Wire	Male Pin	Nylon, Polyamide (PA)	General Purpose	2		0.118 in	3 mm	Board Lock, Pick and Place	Square	Brass	Shrouded - 4 Wall	250 VDC	Locking Ramp	Tin	Solder	-40 °C	105 ░C	Header	Varies by Wire Gauge	UL94 V-0	3 mm	0.118 in	Black	2.54 çm	100 çin	18
TE Connectivity AMP Connectors 4-794633-0	All		9.25 mm	0.364 in	Surface Mount	2.54 µm	100 µin	Board to Cable/Wire	Male Pin	Nylon, Polyamide (PA)	General Purpose	2		0.118 in	3 mm	Board Lock, Pick and Place	Square	Brass	Shrouded - 4 Wall	250 VDC	Locking Ramp	Tin	Solder	-40 °C	105 ░C	Header	Varies by Wire Gauge	UL94 V-0	3 mm	0.118 in	Black	2.54 çm	100 çin	10
TE Connectivity AMP Connectors 794633-4	All	Tin-Lead	9.25 mm	0.364 in	Surface Mount	2.54 µm	100 µin	Board to Cable/Wire	Male Pin	Nylon, Polyamide (PA)	General Purpose	2		0.118 in	3 mm	Board Lock, Pick and Place	Square	Brass	Shrouded - 4 Wall	250 VDC	Locking Ramp	Tin-Lead	Solder	-40 °C	105 ░C	Header	Varies by Wire Gauge	UL94 V-0	3 mm	0.118 in	Black	2.54 çm	100 çin	4
TE Connectivity AMP Connectors 794633-8	All	Tin-Lead	9.25 mm	0.364 in	Surface Mount	2.54 µm	100 µin	Board to Cable/Wire	Male Pin	Nylon, Polyamide (PA)	General Purpose	2		0.118 in	3 mm	Board Lock, Pick and Place	Square	Brass	Shrouded - 4 Wall	250 VDC	Locking Ramp	Tin-Lead	Solder	-40 °C	105 ░C	Header	Varies by Wire Gauge	UL94 V-0	3 mm	0.118 in	Black	2.54 çm	100 çin	8
TE Connectivity AMP Connectors 5-794633-0	All		9.25 mm	0.364 in	Surface Mount	2.54 µm	100 µin	Board to Cable/Wire	Male Pin	Nylon, Polyamide (PA)	General Purpose	2		0.118 in	3 mm	Board Lock, Pick and Place	Square	Brass	Shrouded - 4 Wall	250 VDC	Locking Ramp	Tin	Solder	-40 °C	105 ░C	Header	Varies by Wire Gauge	UL94 V-0	3 mm	0.118 in	Black	2.54 çm	100 çin	20
TE Connectivity AMP Connectors 794633-6	All	Tin-Lead	9.25 mm	0.364 in	Surface Mount	2.54 µm	100 µin	Board to Cable/Wire	Male Pin	Nylon, Polyamide (PA)	General Purpose	2		0.118 in	3 mm	Board Lock, Pick and Place	Square	Brass	Shrouded - 4 Wall	250 VDC	Locking Ramp	Tin-Lead	Solder	-40 °C	105 ░C	Header	Varies by Wire Gauge	UL94 V-0	3 mm	0.118 in	Black	2.54 çm	100 çin	6
TE Connectivity AMP Connectors 5-794633-4	All		9.25 mm	0.364 in	Surface Mount	2.54 µm	100 µin	Board to Cable/Wire	Male Pin	Nylon, Polyamide (PA)	General Purpose	2		0.118 in	3 mm	Board Lock, Pick and Place	Square	Brass	Shrouded - 4 Wall	250 VDC	Locking Ramp	Tin	Solder	-40 °C	105 ░C	Header	Varies by Wire Gauge	UL94 V-0	3 mm	0.118 in	Black	2.54 çm	100 çin	24
TE Connectivity AMP Connectors 4-794633-2	All		9.25 mm	0.364 in	Surface Mount	2.54 µm	100 µin	Board to Cable/Wire	Male Pin	Nylon, Polyamide (PA)	General Purpose	2		0.118 in	3 mm	Board Lock, Pick and Place	Square	Brass	Shrouded - 4 Wall	250 VDC	Locking Ramp	Tin	Solder	-40 °C	105 ░C	Header	Varies by Wire Gauge	UL94 V-0	3 mm	0.118 in	Black	2.54 çm	100 çin	12
TE Connectivity AMP Connectors 1-794633-0	All	Tin-Lead	9.25 mm	0.364 in	Surface Mount	2.54 µm	100 µin	Board to Cable/Wire	Male Pin	Nylon, Polyamide (PA)	General Purpose	2		0.118 in	3 mm	Board Lock, Pick and Place	Square	Brass	Shrouded - 4 Wall	250 VDC	Locking Ramp	Tin-Lead	Solder	-40 °C	105 ░C	Header	Varies by Wire Gauge	UL94 V-0	3 mm	0.118 in	Black	2.54 çm	100 çin	10
