TMCM-0013-2A
ActiveAnalog Devices Inc./Maxim Integrated

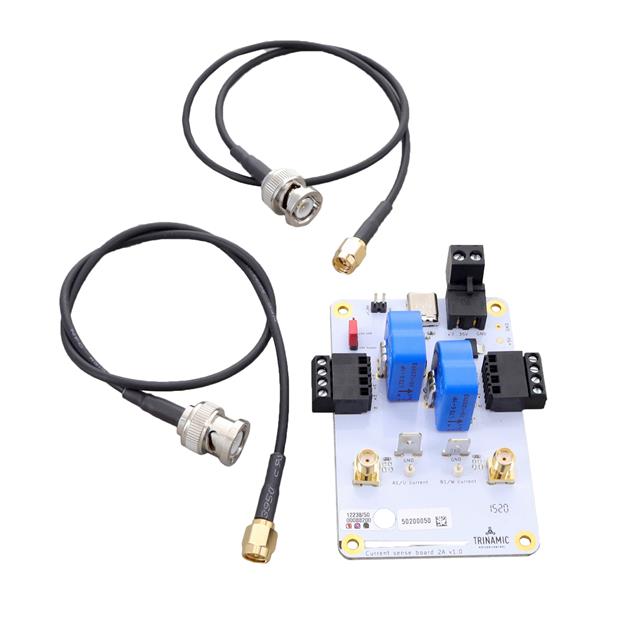

CURRENT SENSE BOARD 2A POWER SUP
Deep-Dive with AI
Search across all available documentation for this part.
TMCM-0013-2A
ActiveAnalog Devices Inc./Maxim Integrated
CURRENT SENSE BOARD 2A POWER SUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMCM-0013-2A | TMCM-0013 Series |
|---|---|---|
| Accessory Type | - | Cable Assembly |
| Embedded | False | False |
| For Use With/Related Products | - | TMCM-0013-xA |
| Interface | Analog | Analog |
| Sensing Range | 2 A | 2 - 6 A |
| Sensor Type | Current Sensor | Current Sensor |
| Supplied Contents | Board(s) | Board(s) |
| Utilized IC / Part | LTS 6-NP | LTS 6-NP |
| Voltage - Supply [Max] | 35 V | 35 V |
| Voltage - Supply [Min] | 7 V | 7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 130.68 | |
TMCM-0013 Series
CABLE LOOM FOR TMCM-0013-XA
| Part | Accessory Type | For Use With/Related Products | Sensor Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Interface | Supplied Contents | Embedded | Utilized IC / Part | Sensing Range |
|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCM-0013-CABLE | Cable Assembly | TMCM-0013-xA | ||||||||
Analog Devices Inc./Maxim Integrated TMCM-0013-2A | Current Sensor | 35 V | 7 V | Analog | Board(s) | LTS 6-NP | 2 A | |||
Analog Devices Inc./Maxim Integrated TMCM-0013-3A | Current Sensor | 35 V | 7 V | Analog | Board(s) | LTS 6-NP | 3 A | |||
Analog Devices Inc./Maxim Integrated TMCM-0013-6A | Current Sensor | 35 V | 7 V | Analog | Board(s) | LTS 6-NP | 6 A |
Description
General part information
TMCM-0013 Series
LTS 6-NP - Current Sensor Sensor Evaluation Board
Documents
Technical documentation and resources
No documents available
