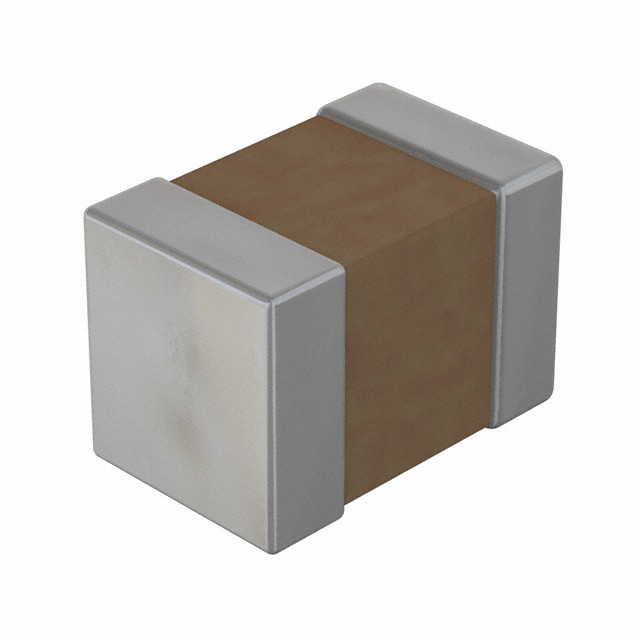

0805E182K101KHT

Active

Knowles Johanson Manufacturing

CAP CER 1800PF 100V 0805

Deep-Dive with AI

Search across all available documentation for this part.

0805E182K101KHT

Active

Knowles Johanson Manufacturing

CAP CER 1800PF 100V 0805

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0805E182K101KHT

Applications	General Purpose
Capacitance	1800 pF
Features	High Temperature
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	0805
Size / Dimension [x]	2.03 mm
Size / Dimension [x]	0.08 "
Size / Dimension [y]	0.05 "
Size / Dimension [y]	1.27 mm
Thickness (Max) [Max]	0.054 in
Thickness (Max) [Max]	1.37 mm
Tolerance	10 %
Voltage - Rated	100 V

0805E Series

Part	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Thickness (Max) [Max]	Thickness (Max) [Max]	Capacitance	Package / Case	Mounting Type	Features	Applications
Knowles Johanson Manufacturing 0805E121K501KHT	500 V	-55 °C	200 °C	10 %	2.03 mm	0.08 "	0.05 "	1.27 mm	0.054 in	1.37 mm	120 pF	0805	MLCC Surface Mount	High Temperature	General Purpose
Knowles Johanson Manufacturing 0805E221K501KHT	500 V	-55 °C	200 °C	10 %	2.03 mm	0.08 "	0.05 "	1.27 mm	0.054 in	1.37 mm	220 pF	0805	MLCC Surface Mount	High Temperature	General Purpose
Knowles Johanson Manufacturing 0805E272K101KHT	100 V	-55 °C	200 °C	10 %	2.03 mm	0.08 "	0.05 "	1.27 mm	0.054 in	1.37 mm	2700 pF	0805	MLCC Surface Mount	High Temperature	General Purpose
Knowles Johanson Manufacturing 0805E332K101KHT	100 V	-55 °C	200 °C	10 %	2.03 mm	0.08 "	0.05 "	1.27 mm	0.054 in	1.37 mm	3300 pF	0805	MLCC Surface Mount	High Temperature	General Purpose
Knowles Johanson Manufacturing 0805E821K101KHT	100 V	-55 °C	200 °C	10 %	2.03 mm	0.08 "	0.05 "	1.27 mm	0.054 in	1.37 mm	820 pF	0805	MLCC Surface Mount	High Temperature	General Purpose
Knowles Johanson Manufacturing 0805E152K251KHT	250 V	-55 °C	200 °C	10 %	2.03 mm	0.08 "	0.05 "	1.27 mm	0.054 in	1.37 mm	1500 pF	0805	MLCC Surface Mount	High Temperature	General Purpose
Knowles Johanson Manufacturing 0805E473K500KHT	50 VDC	-55 °C	200 °C	10 %	2.03 mm	0.08 "	0.05 "	1.27 mm	0.054 in	1.37 mm		0805	MLCC Surface Mount	High Temperature	General Purpose
Knowles Johanson Manufacturing 0805E681K501KHT	500 V	-55 °C	200 °C	10 %	2.03 mm	0.08 "	0.05 "	1.27 mm	0.054 in	1.37 mm	680 pF	0805	MLCC Surface Mount	High Temperature	General Purpose
Knowles Johanson Manufacturing 0805E153K500KHT	50 VDC	-55 °C	200 °C	10 %	2.03 mm	0.08 "	0.05 "	1.27 mm	0.054 in	1.37 mm	15000 pF	0805	MLCC Surface Mount	High Temperature	General Purpose
Knowles Johanson Manufacturing 0805E123K101KHT	100 V	-55 °C	200 °C	10 %	2.03 mm	0.08 "	0.05 "	1.27 mm	0.054 in	1.37 mm	0.012 µF	0805	MLCC Surface Mount	High Temperature	General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.73

Description

General part information

0805E Series

1800 pF ±10% 100V Ceramic Capacitor 0805 (2012 Metric)

Documents

Technical documentation and resources

No documents available
