MC2047-06
ActiveFairview Microwave

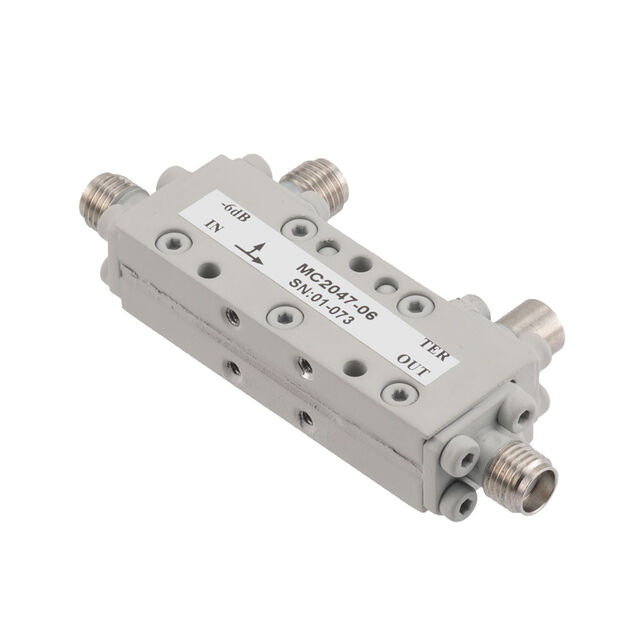

COUPLER 2-8 GHZ 50 W SMA
MC2047-06
ActiveFairview Microwave
COUPLER 2-8 GHZ 50 W SMA
Description
General part information
MC2047-06
RF Directional Coupler General Purpose 2GHz ~ 8GHz 6 ± 1dB Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | MC2047-06 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 6 dB |
| Coupling Factor Tolerance | 1 dB |
| Frequency (Max) | 8 GHz |
| Frequency (Min) | 2 GHz |
| Insertion Loss | 0.5 dB |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
