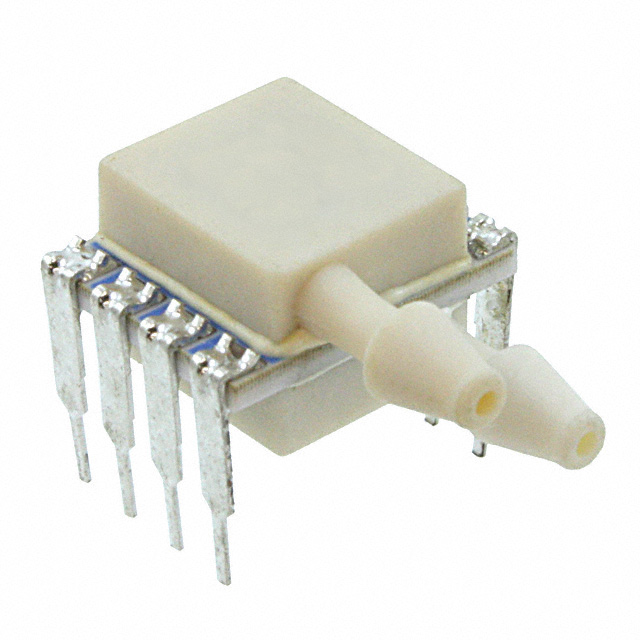

4525DO-DS5AI015DP
ActiveTE Connectivity Measurement Specialties
SENSOR 15PSID 0.14" 14BIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4525DO-DS5AI015DP
ActiveTE Connectivity Measurement Specialties
SENSOR 15PSID 0.14" 14BIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4525DO-DS5AI015DP |
|---|---|
| Accuracy | 0.25 % |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 310.26 kPa |
| Maximum Pressure [Max] | 45 PSI |
| Mounting Type | Through Hole |
| Operating Pressure [custom] | 15 PSI |
| Operating Pressure [custom] | 103.42 kPa |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -25 °C |
| Output | 14 b |
| Output Type | I2C |
| Package / Case | 8-DIP Module |
| Port Size | 0.14 " |
| Port Size | 3.56 mm |
| Port Size | Tube, Dual, Male |
| Port Style | Barbed |
| Pressure Type | Differential |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 240 | $ 55.14 | |
Description
General part information
4525DO-DS5AI015DP
Pressure Sensor 15PSI (103.42kPa) Differential Male - 0.14" (3.56mm) Tube, Dual 14 b 8-DIP Module
Documents
Technical documentation and resources
