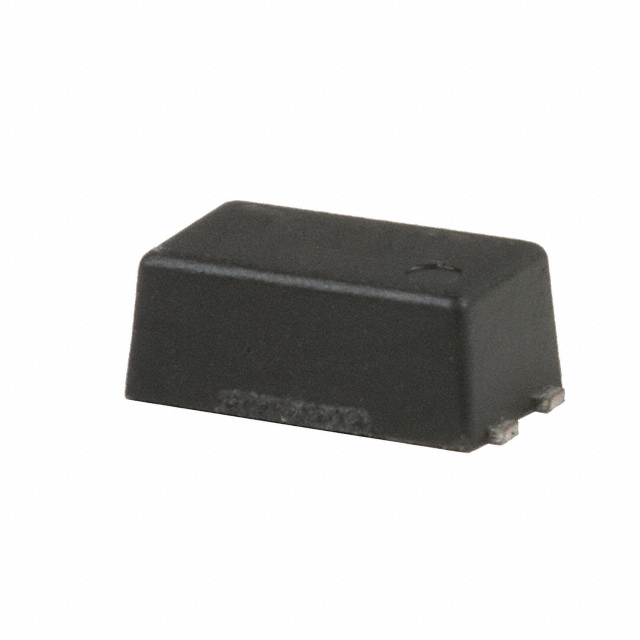

PS2911-1-V-F3-A

Obsolete

CEL

OPTOISOLATOR 2.5KV TRANS 4-SMD

Search across all available documentation for this part.

Obsolete

CEL

OPTOISOLATOR 2.5KV TRANS 4-SMD

Technical Specifications

Parameters and characteristics for this part

Specification	PS2911-1-V-F3-A

Current - DC Forward (If) (Max)	50 mA
Current - Output / Channel [custom]	40 mA
Current Transfer Ratio (Max)	400 %
Current Transfer Ratio (Min) [Min]	100 %
Input Type	DC
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-55 °C
Output Type	1.81 mOhm
Package / Case	4-SMD, Flat Leads
Rise / Fall Time (Typ) [custom]	10 µs
Rise / Fall Time (Typ) [custom]	5 µs
Supplier Device Package	4-Mini-Flat
Turn On / Turn Off Time (Typ) [custom]	120 µs
Turn On / Turn Off Time (Typ) [custom]	40 µs
Vce Saturation (Max) [Max]	300 mV
Voltage - Forward (Vf) (Typ)	1.1 V
Voltage - Isolation	2500 Vrms
Voltage - Output (Max) [Max]	40 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Optoisolator Transistor Output 2500Vrms 1 Channel 4-Mini-Flat
