1064524-1
ActiveTE Connectivity AMP Connectors

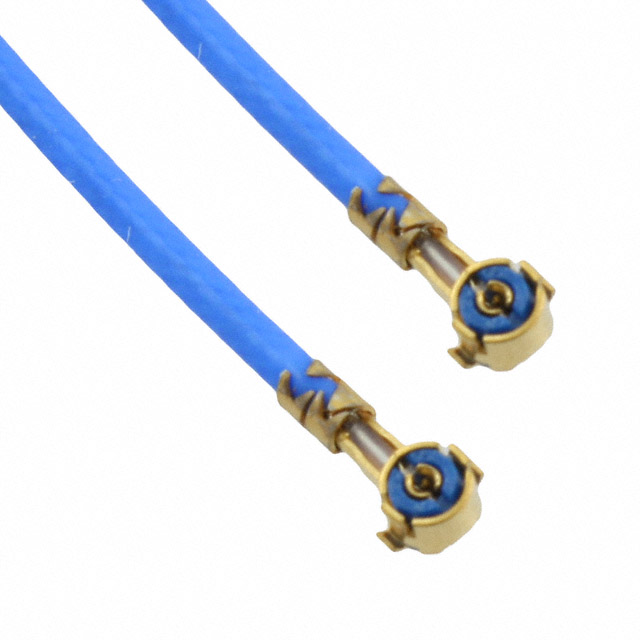

CBL ASSY SSMT JACK-JACK 3.937"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1064524-1
ActiveTE Connectivity AMP Connectors
CBL ASSY SSMT JACK-JACK 3.937"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1064524-1 |
|---|---|
| 1st Connector | SSMT Jack, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SSMT Jack, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Color | Blue |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length [x] | 0.1 m |
| Length [x] | 3.937 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | SSMT to SSMT |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 13.48 | |
| 10 | $ 13.19 | |||
| 25 | $ 12.84 | |||
| 50 | $ 12.21 | |||
| 100 | $ 11.02 | |||
| 250 | $ 10.95 | |||
| 500 | $ 9.54 | |||
| 1000 | $ 9.47 | |||
1064524 Series
CBL ASSY SSMT JACK-JACK 3.937"
| Part | 1st Contact Gender | Features | Style | 2nd Connector Mounting Type | Length [x] | Length [x] | Overall Impedance | 2nd Connector | Frequency - Max [Max] | Color | 1st Connector | 1st Connector Mounting Type | 2nd Contact Gender | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1064524-1 | Female | Shielded | SSMT to SSMT | Free Hanging (In-Line) | 0.1 m | 3.937 in | 50 Ohms | SSMT Jack, Right Angle | 6000 MHz | Blue | Right Angle, SSMT Jack | Free Hanging (In-Line) | Female | 125 °C | -40 °C |
Description
General part information
1064524 Series
Cable Assembly Coaxial SSMT to SSMT 3.937" (100.00mm)
