2954798

Active

Phoenix Contact

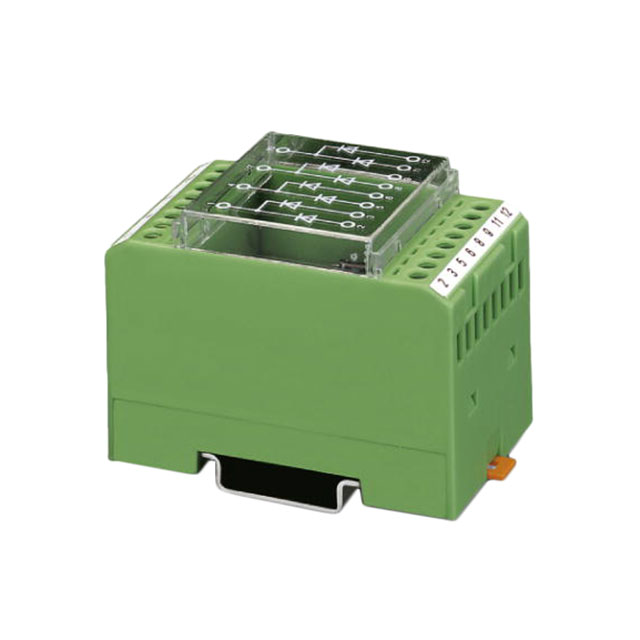

DIODE MODULE GP 1300V 400MA

Search across all available documentation for this part.

Active

Phoenix Contact

DIODE MODULE GP 1300V 400MA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 4 Pair Common Cathode 1300 V 400mA DIN Rail/Channel Module

Technical documentation and resources

No documents available

Specification	2954798	29547 Series

Current - Average Rectified (Io) (per Diode)	400 mA	200 - 400 mA
Diode Configuration	4 Pair Common Cathode	4 Pair Common Cathode, 16 Pair Common Cathode
Mounting Type	DIN Rail/Channel	DIN Rail/Channel
Operating Temperature - Junction [Max]	50 °C	50 °C
Operating Temperature - Junction [Min]	-20 °C	-20 °C
Package / Case	Module	Module
Speed	Standard Recovery >500ns	Standard Recovery >500ns, Any Speed
Speed	200 mA	200 mA
Supplier Device Package	Module	Module
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1300 V	1300 V

Part	Mounting Type	Speed	Speed	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Diode Configuration	Supplier Device Package	Current - Average Rectified (Io) (per Diode)	Technology	Voltage - DC Reverse (Vr) (Max) [Max]
Phoenix Contact 2954798	DIN Rail/Channel	Standard Recovery >500ns	200 mA	Module	50 °C	-20 °C	4 Pair Common Cathode	Module	400 mA	Standard	1300 V
Phoenix Contact 2954785	DIN Rail/Channel	Any Speed	200 mA	Module	50 °C	-20 °C	16 Pair Common Cathode	Module	200 mA	Standard	1300 V
