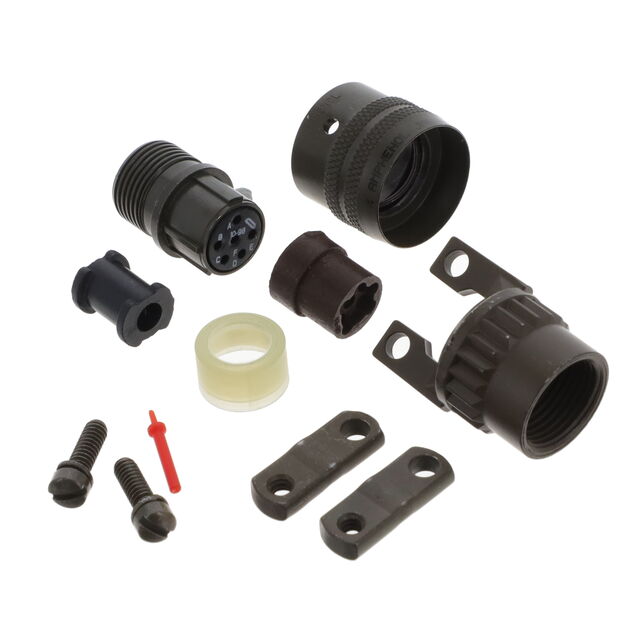

MS3116F10-98S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3116F10-98S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3116F10-98S | MS3116F10 Series |
|---|---|---|
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Backshell Material, Plating | - | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Coupling Nut, Backshell | Cable Clamp, Coupling Nut, Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy | Aluminum Alloy, Aluminum |
| Shell Size - Insert [Max] | 98 | 98 |
| Shell Size - Insert [Min] | 10 | 10 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 VAC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 85.44 | |
| 10 | $ 78.40 | |||
| 25 | $ 75.39 | |||
| 50 | $ 72.87 | |||
| 100 | $ 68.85 | |||
MS3116F10 Series
MIL-26482 MS/PT/CMB PLUG
| Part | Fastening Type | Qualification | Voltage Rating | Current Rating (Amps) | Contact Material | Shell Finish | Number of Positions | Applications | Color | Ingress Protection | Features | Mounting Type | Contact Finish - Mating | Shell Material | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Shielding | Primary Material | Grade | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Insert Material | Backshell Material, Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3116F10-98S | Bayonet Lock | MIL-DTL-26482 Series I | 600 VAC | 7.5 A | Copper Alloy | Olive Drab Chromate over Cadmium | 6 | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab | Environment Resistant | Backshell, Cable Clamp, Coupling Nut | Free Hanging (In-Line) | Gold | Aluminum Alloy | 10 | 98 | Unshielded | Metal | Military | N | -55 °C | 125 °C | Female Sockets, Plug | Neoprene | |
Amphenol Industrial Operations MS3116F10-98P | Bayonet Lock | MIL-DTL-26482 Series I | Copper Alloy | Olive Drab Chromate over Cadmium | 6 | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab | Environment Resistant | Backshell, Cable Clamp, Coupling Nut | Free Hanging (In-Line) | Gold | Aluminum | 10 | 98 | Unshielded | Metal | Military | N | -55 °C | 125 °C | Male Pins, Plug | Neoprene | Aluminum, Olive Drab Chromate over Cadmium |
Description
General part information
MS3116F10 Series
6 Position Circular Connector Plug, Female Sockets Solder Cup
