PN-1325-AC
ActiveBUD INDUSTRIES

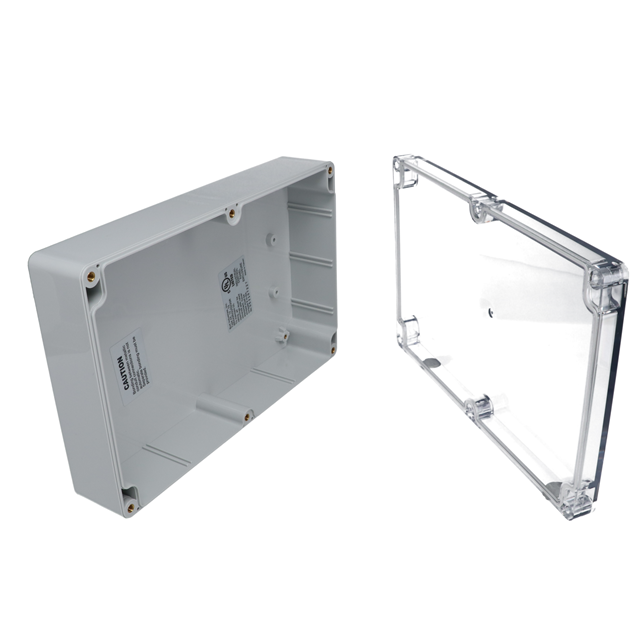

IP68 NEMA 6P PC BOX WITH CLEAR COVER 8.74X5.75X2.17
PN-1325-AC
ActiveBUD INDUSTRIES
IP68 NEMA 6P PC BOX WITH CLEAR COVER 8.74X5.75X2.17
Description
General part information
PN-1325-AC
Box Plastic, Polycarbonate Gray, Clear Cover/Door Cover Included 8.740" L x 5.730" W (222.00mm x 145.50mm) X 2.170" (55.12mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PN-1325-AC |
|---|---|
| Area (L x W) | 43.4 in² |
| Color | Clear Cover/Door, Gray |
| Container Type | Box |
| Design | Cover Included |
| Height | 2.17 in |
| Material | Polycarbonate (PC), Plastic, Polycarbonate |
| Material Flammability Rating | UL94 HB |
| Ratings | 4, 6P, 2, NEMA 1, 12, 13, 6, UL-508, IP68, 4X |
| Size / Dimension Length | 8.74 in |
| Size / Dimension Width | 5.73 in |
| Thickness | 0.12 in |
