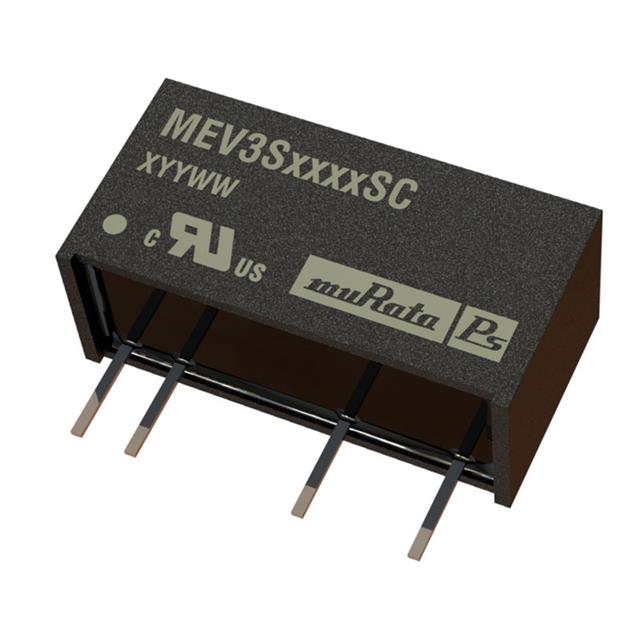

MEV3S0512SC

Active

Murata Power Solutions Inc.

ISOLATED BOARD MOUNT DC/DC CONVERTER, SIP, FIXED, THROUGH HOLE, 3 W, 12 V, 250 MA ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

ISOLATED BOARD MOUNT DC/DC CONVERTER, SIP, FIXED, THROUGH HOLE, 3 W, 12 V, 250 MA ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

ISOLATED BOARD MOUNT DC/DC CONVERTER, SIP, FIXED, THROUGH HOLE, 3 W, 5 V, 600 MA ROHS COMPLIANT: YES

Part	Package / Case	Current - Output (Max) [Max]	Power (Watts)	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output 1	Applications	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Number of Outputs	Mounting Type
Murata Power Solutions Inc. MEV3S0505SC	7-SIP Module, 4 Leads	600 mA	3 W	83 %	85 °C	-40 °C	3000 V	4.5 V	5.5 V	5 V	ITE (Commercial)	Isolated Module	19.6 mm	0.77 in	0.3 "	10.2 mm	0.4 "	7.6 mm	1	Through Hole
Murata Power Solutions Inc. MEV3S0512SC	7-SIP Module, 4 Leads	250 mA	3 W	85.5 %	85 °C	-40 °C	3000 V	4.5 V	5.5 V	12 V	ITE (Commercial)	Isolated Module	19.6 mm	0.77 in	0.3 "	10.2 mm	0.4 "	7.6 mm	1	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 250mA 4.5V - 5.5V Input
