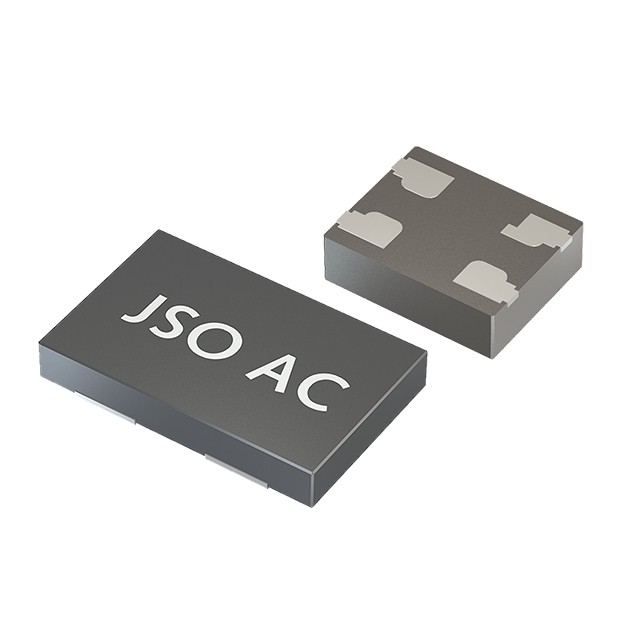

O 24,000000-JSO22D1AC-D-2V3-T3-N-D
ObsoleteJauch Quartz
MEMS OSC XO 24.0000MHZ H/LV-CMOS
O 24,000000-JSO22D1AC-D-2V3-T3-N-D
ObsoleteJauch Quartz
MEMS OSC XO 24.0000MHZ H/LV-CMOS
Description
General part information
O 24,000000-JSO22D1AC-D-2V3-T3-N-D
24 MHz XO (Standard) HCMOS, LVCMOS Oscillator 2.5V ~ 3.3V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | O 24,000000-JSO22D1AC-D-2V3-T3-N-D |
|---|---|
| Base Resonator | MEMS |
| Current - Supply (Max) | 10.9 mA |
| Frequency | 24 MHz |
| Frequency Stability | 20 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.031 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output | HCMOS, LVCMOS |
| Package / Case | 4-SMD, No Lead |
| Ratings | AEC-Q100 |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | XO (Standard) |
| Voltage - Supply (Maximum) | 3.3 V |
| Voltage - Supply (Minimum) | 2.5 V |
