30-02370
ActiveTensility International Corp
CBL 6CON 24AWG BLK TPU
30-02370
ActiveTensility International Corp
CBL 6CON 24AWG BLK TPU
Description
General part information
30-02370

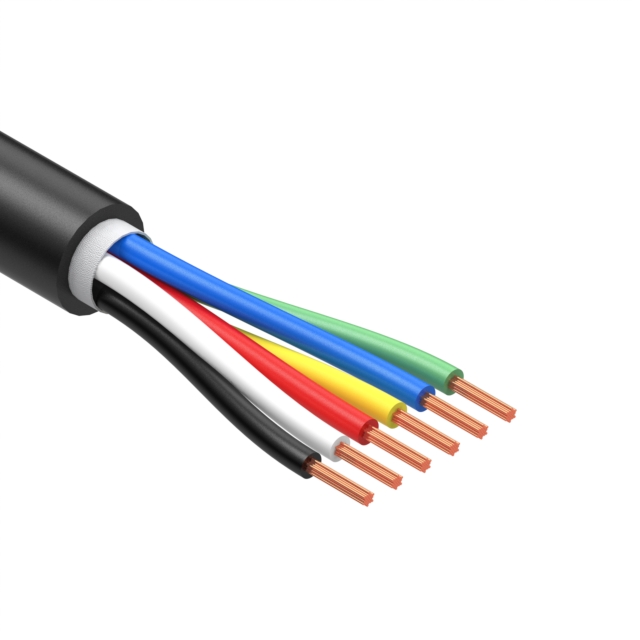

6 Conductor Multi-Conductor Cable Black 24 AWG 502.0' (153.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 30-02370 |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Insulation | Thermoplastic Elastomer (TPE) |
| Conductor Material | Copper, Bare |
| Conductor Strand Count | 26 |
| Conductor Strand Diameter | 0.0039 in |
| Jacket (Insulation) Diameter | 0.197 in |
| Jacket (Insulation) Material | Thermoplastic Polyurethane (TPU) |
| Jacket (Insulation) Thickness | 0.0299 in |
| Jacket Color | Black |
| Length | 502 ft |
| Number of Conductors | 6 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Ratings | 20280, Style, UL |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
